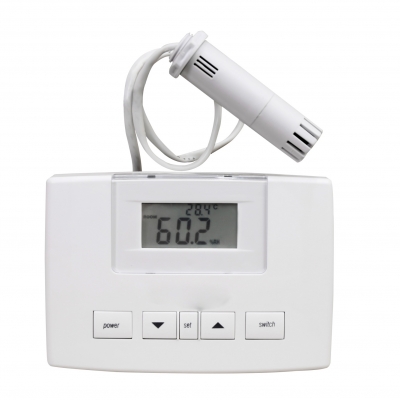

Musktool-F2000P Temperature and Humidity Controller OEM
overview
| Display and control ambiance relative humidity& and temperature. LCD displays room humidity and temperature, set point, and control status etc. One or two dry contact outputs to control an humidifier/dehumidifier and a cooling/heating device Powerful parameter settings and on-site programming to meet more applications. Optional RS485 interface with Modbus RTU and optional external RH&Temp. sensor |
FEATURES
| Detect and display ambiance relative humidity& temperature A high accuracy RH & Temp. sensor inside LCD can display working status such as %RH, temperature, set point, and device mode, etc. Makes reading and operating easy and accurate Provide one or two dry contact outputs to control a Humidifier/dehumidifier and a cooling/heating device All models feature user-friendly setting buttons Enough parameters setup for end users for more applications. All setup will be held even if power failure Button-lock function avoids wrong operation and keep on the setup Infrared Remote Control (optional) Blue backlight (optional) Modbus RS485 interface (optional) Provide the controller with an external RH&Temp. sensor or external RH&Temp. sensor box Other wall mounting and duct mounting humidity controllers, please see our high accuracy hygrostat THP/TH9-Hygro series and THP –Hygro16 Plug-and-Play high-power humidity controller. |
TECHNICAL SPECIFICATIONS
| Power supply | 230VAC、110VAC、24VAC/VDC selectable in the order | ||
| Output | One or two Max. 5A relay/each for the On/Off output | ||
| Displaying | LCD | ||
| External sensor connection | Typical 2m, 4m/6m/8m selectable | ||
| Net weight | 280g | ||
| Dimensions | 120mm(L)×90mm(W)×32mm(H) | ||
| Mounting standard | Wall mounting in the wire box of 2”×4” or 65mm×65mm | ||
| Sensor spec. | Temperature | Humidity | |
| Accuracy | ±0.5℃ (20℃~40℃) | ±3.5% RH (20%-80%RH), 25℃ | |
| Measuring range | 0℃~60℃ | 0~100%RH | |
| Display resolution | 0.1℃ | 0.1%RH | |
| Stability | <0.04℃/year | <0.5%RH/year | |
| Storage environment | 0℃-60℃, 0%~80%RH | ||
