Musktool-DT-328E 23Lamps(9lamps optional) Stroboscope,UV ink printing detection stroboscope,Detecting defects in gravure printing,flexo printing and high speed object inspection and speed testing.
Overview
The stroboscope Musktool-DT-2019EL is our latest developed new energy product, which use America CREE high power LED lamps and have the characteristics of wide measurement range, high brightness, uniform brightness, long life time, it can be used any time and any where, lightweight and compact design. Easy to operate with the thumb, built-in lithium battery, single use for more than 5 hours. This instrument used to measure movement of objects, when strobe flash speed same with high speed moving objects, what we see is a relatively static state. Under this principle we can clearly observe movement of the gear wheels, working condition of all kinds of rotor. |
TECHNICAL SPECIFICATION
| 1. Charging Voltage: | DC10.8V |
| 2. Power : | about 90W |
| 3. Lamp Spec.: | Original America CREE 10W LED Lamp |
| 4. Battery: | Lithium Rechargeable Battery, 450MA |
| 5. Battery Running time: | above 5 hours |
| 6. Trigger Mode: | Internal Trigger and External Tigger. |
| 7. Flash Frequency Range: | 60-120,000 FPM/min. |
| 8. Net weight: | 0.28kg |
APPLICATIONS
|

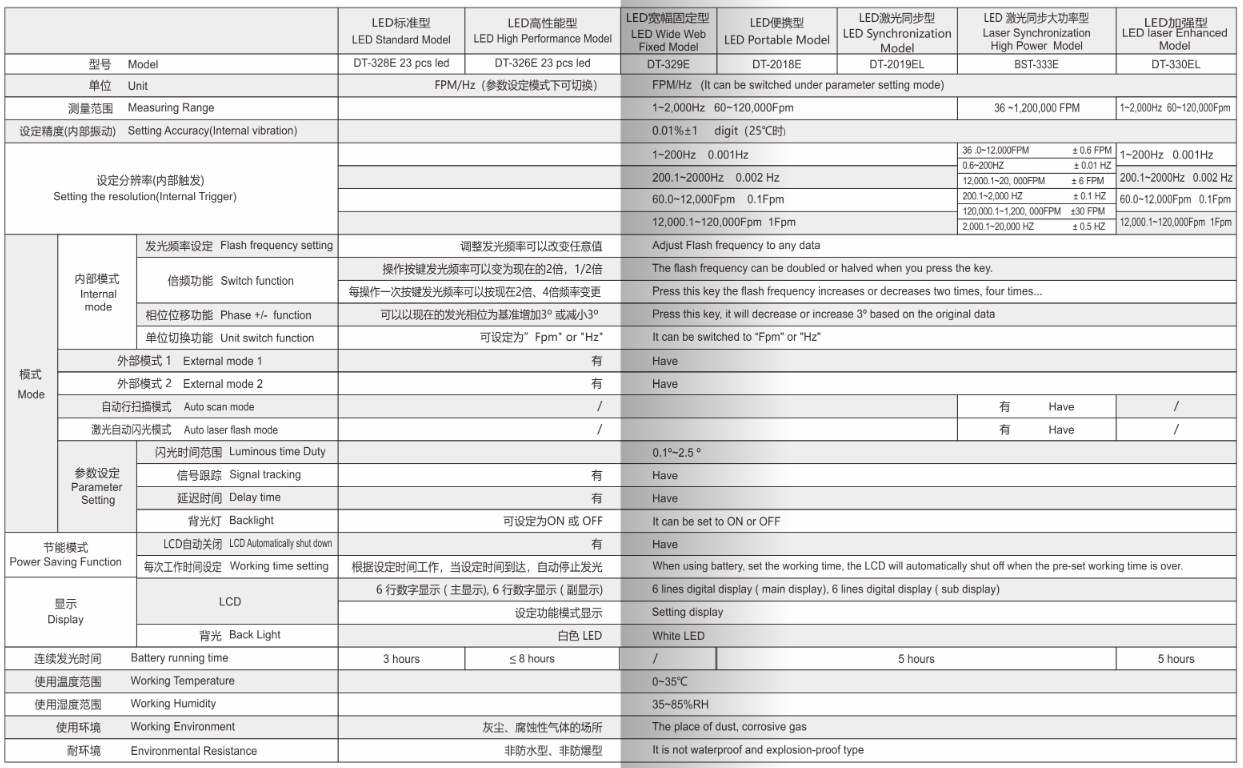

SELECTION GUIDE
| LED Standard Model | High Performace model | LED Wide web fixed model | LED Portable model | LED Synchronization Model | Laser synchronization high power model | LED Laser enhanced model | |||
| Model | Musktool-DT328E(23PCS LED) | Musktool-DT326E(23PCS LED) | Musktool-DT329E | Musktool-DT2018E | Musktool-DT2019EL | Musktool-BST-333E | Xteser-DT330EL | ||
| Unit | FPM /HZ(it can bu switched under parameter setting mode) | ||||||||
| Measuring range | 1-2000Hz,60-120000FPM | 36-120,0000FPM | 1-2000Hz,60-120000FPM | ||||||
| Setting accuracy(internal vibration) | 0.01%±1 digit（25℃） | ||||||||
| Setting the resolution(internal trigger) | 1-200Hz, 0.001Hz | 36-12000FPM,±0.6FPM | 1-200Hz, ±0.001Hz | ||||||
| 200.01Hz-2000Hz,0.002Hz | 0.6-200Hz, ±0.01Hz | 200.1-2000Hz, ±0.002Hz | |||||||
| 60-12000FPM,0.1Fpm | 2000-120000FPM, ±6FPM | 60-12000FPM, 0.1FPM | |||||||
| 12000-120000FPM, 1FPM | 200.01-2000Hz, ±0.1Hz | 12000-120000FPM, 1FPM | |||||||
| 120000-120,0000FPM, ±30FPM | |||||||||
| 2000-2000Hz, ±0.5Hz | |||||||||
| Mode | Internal Mode | Fresh frequency setting | Adjust flash frequency to any data | ||||||
| Switch function | The flash frequency can be doubled or halved when you press the key. Press this key the flash frequency increases or decreases two times,four times. | ||||||||
| Phase +/-Function | Press this key, it will decrease or increase 3o based on the original data | ||||||||
| Unit switch function | It can be switched to "Fpm" or "Hz" | ||||||||
| External Mode 1 | Support | ||||||||
| External mode 2 | Support | ||||||||
| Auto scan mode | / | Support | / | ||||||
| Auto laser flahs mode | / | Support | / | ||||||
| Parameter Setting | Luminous time duty | 0.1o-2.5o | |||||||
| Signal Tracking | Support | ||||||||
| Delay Time | Support | ||||||||
| Backlight | Support | ||||||||
| Power saving function | LCD Auto Shut down | Support | |||||||
| Working time setting | Set the working time,the LCD will auto shut off when the pre-set working time is over | ||||||||
| Display | LCD | 6 Lines digital display, setting display | |||||||
| Backlight | white LED | ||||||||
| Battery running time | 3hours | ≤8hours | / | 5hours | 5hours | ||||
| Working temperature | 0-35o | ||||||||
| Working humidity | 35-85%RH | ||||||||
| Working environment | The place of dust, corrosive gas | ||||||||
| Environmental Resistance | It is not waterproof and explosion-proof type | ||||||||
