Musktool-DME06-Laboratory Sieve Vibrating Machine Digital Vertical Vibration Sieve Shaker

Musktool-DME06-Laboratory Sieve Vibrating Machine Digital Vertical Vibration Sieve Shaker

2025-08-22 16:17:54

Musktool-DME06-Laboratory Sieve Vibrating Machine Digital Vertical Vibration Sieve Shaker

  • Main Feature : Musktool-DME06-Laboratory Sieve Vibrating Machine Digital Vertical Vibration Sieve Shaker
  • Serial No. : Owen0359
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

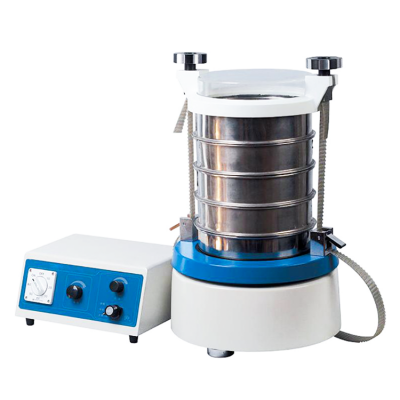

Musktool-DME06-Laboratory Sieve Vibrating Machine Digital Vertical Vibration Sieve Shaker

Product Description


图片关键词

Features:

1.Particle analysis;
2.Widely used in the field of pharmaceutical industry, food, cosmetics, grain;
3.Advanced integrated circuit control;
4.Easy to operate;
5.The sieves are chosen by users

Technical Specifications:

Model
WQS
Vibration direction
Vertical vibration
Measurement range
≤325 mesh
Vibration Frequency
3000times/min, 6000times/min
Amplitude selection
0-3mm, continuous adjustment
Vibration mode:
fine vibration; intermittent vibration; continuation vibration
Weight (Net)
30kg
Overall dimensions
610mm×390mm×400mm
The larger the mesh number, the finer the particle size of the material; the smaller the mesh number, the larger the particle size of the material. The sieving particle size is the size of the sieve holes that the particles can pass through the sieve, which is expressed by the number of sieve holes in the sieve with a width of 1 inch (2.54cm), so it is called the mesh number.
Mesh Number
Hole Diameter (mm)
Mesh Number
Hole Diameter (mm)
4mesh
5
30mesh
0.6
5mesh
4
32mesh
0.55
6mesh
3.2
35mesh
0.5
7mesh
2.8
40mesh
0.45
8mesh
2.5
45mesh
0.4
lOmesh
2
50mesh
0. 355
12mesh
1.6
55mesh
0.315
14mesh
1.43
60mesh
0.3
16mesh
1.25
65mesh
0.25
18mesh
1
70mesh
0.22
20mesh
0.9
75mesh
0.2
24mesh
0.8
80mesh
0.18
26mesh
0.71
85mesh
0.17
28mesh
0.63
90mesh
0.16
Mesh Number
Hole Diameter (mm)
Mesh Number
Hole Diameter (mm)
100mesh
0.15
280mesh
0. 055
110mesh
0.14
300mesh
0. 054
120mesh
0.125
320mesh
0. 048
130mesh
0.111
325mesh
0. 045
140mesh
0. 105
350mesh
0. 041
150mesh
0.1
360mesh
0.04
160mesh
0. 098
400mesh
0. 0385
180mesh
0.09
500mesh
0.03
190mesh
0.08
600mesh
0. 025
200mesh
0. 074
700mesh
0.02
220mesh
0.07
800mesh
0.015
240mesh
0. 065
900mesh
0.01
250mesh
0. 063


260mesh
0.06
