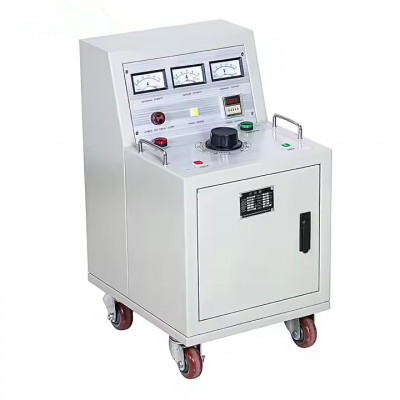

musktool-DDG26 1000a High Current Primary Injection Test Set Primary Current Injector 1000a

Main Feature :
Serial No. : monica0615

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

xtester-DDG26 1000a High Current Primary Injection Test Set Primary Current Injector 1000a

Product Paramenters

type specification	capacity(kVA)	elementary		secondary		boundary dimension(mm)、length×relax×high-priced	weightkg	structural style
type specification	capacity(kVA)	V1	A1	V2	A2	boundary dimension(mm)、length×relax×high-priced	weightkg	structural style
DDG-500	3	220	15	6	500	430×338×550	48	an organic whole
DDG-1000	6	220	27	6	1000	500×380×600	80	an organic whole
DDG-2500	15	380	39.5	6	2500	600×430×790	145	an organic whole
DDG-4000	24	380	63	6	4000	640×450×820	180	an organic whole/fission
DDG-5000	30	380	79	6	5000	600×430×900、300×500×500	145、135	fission
DDG-6000	36	380	95	6	6000	600×430×900、300×500×500	150、140	fission
DDG-8000	48	380	126	6	8000	600×450×950、350×550×550	180	fission
DDG-10000	60	380	158	6	10000	800×600×1100、380×550×600	200	fission

Functional & Characteristics

1、The large current generator has two ammeters，Size range monitoring.

2、The autotransformer can be adjusted freely.

3、status indicator lamp，press-button control，simplicity of operator.

4、Integral separable structure，easy to move on.

Lable: DDG26 High Current Injector
