Musktool-DANA 4 Steps Ultrasonic Calibration Block 56710 Steps Carbon Steel Stainless Steel for UT Ultrasonic Thickness Measurement
Specification
Features

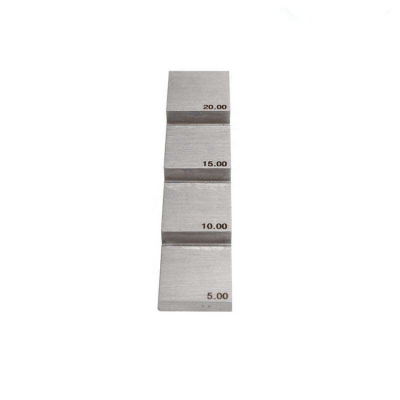

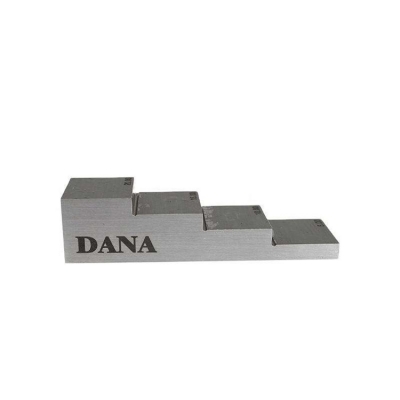

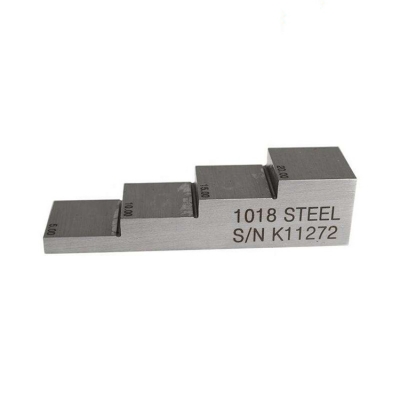

| Four-step Segmented Calibration Design This calibration block adopts a 4-step structure, with a thickness range covering 3mm, 5mm, 10mm, 15mm (or other specifications can be customized according to actual needs, such as 6.25mm, 12.5mm, etc.). It is specifically designed for the linear calibration of ultrasonic thickness gauges (UT). For example, the 3mm and 5mm steps can verify the measurement accuracy of the equipment for thin-walled materials, while the 10mm and 15mm steps are suitable for medium- and thick-walled scenarios. The multi-step reflecting surfaces eliminate the differences in sound speed and probe delay errors. This design avoids the limitations of single-point calibration and can complete the full-range accuracy verification at one time. 2. Dual-material Adaptability and Industrial Compatibility The product is available in two materials, carbon steel (such as 1018 steel) and stainless steel (such as 304 stainless steel), to meet the inspection requirements of different industrial scenarios: Carbon Steel Version: With a carbon content of approximately 0.18% - 0.20%, it complies with general standards such as ASTM A36 and is suitable for the calibration of conventional metal structural parts such as pressure vessels and pipelines. Stainless Steel Version |
