Xtester-Customizable MIK-R9600 18 channels paperless recorder

  • Main Feature :
  • Serial No. : Lisa0708
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

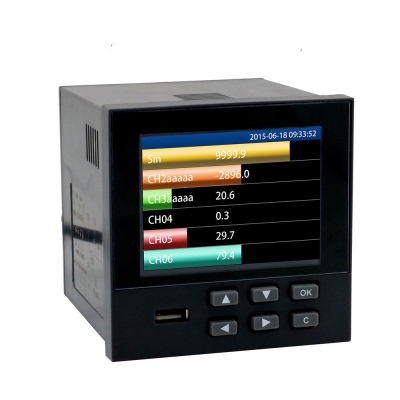

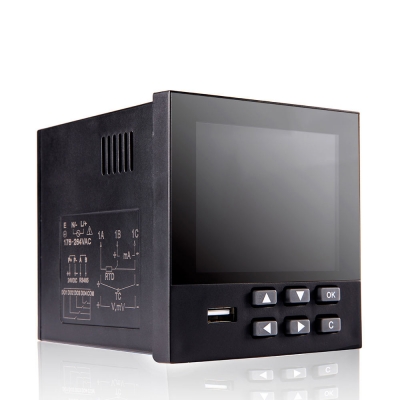

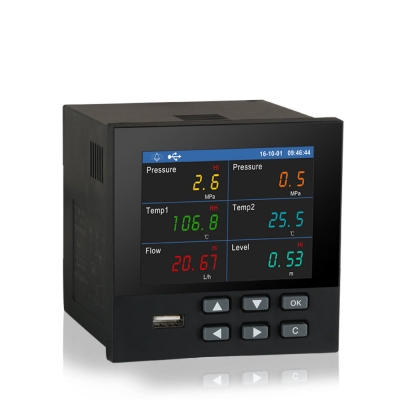

Musktool-Customizable MIK-R9600 18 channels paperless recorder

Features

Basic Functions

1. Up to 18 channels of universal input

2.UP to 4 Alarm Output Relays

3.With 150mA Power distribution Output

4.Communication type: RS485, Modbus RTU

5.With a USB data transfer interface

Display & Operation

1.Multiple display Function :choose the display your way

2.Use date and time calendar search functionsto Review historical data .

3.3.5 inch TFT color LCD (320 x 240pixels)

Reliability and Security

1. Dust- and splash-proof front panel

2.Power Fail Safeguard:All the data stored in Flash memory,make sure that all the historical data and configuration para- meters  will not lost when power fail. Real time clock power supply by lithium batteries.

Data Acquisition Software

1.Software for varieties of tasks : analysis, settings, and acquisition


Specification

Display

This instrument is a 5-inch TFT true color LCD screen. The resolution of it is 320 * 240 and is high-definition LED backlit. The three sides close to zero visual angle gives you a wide view experience.

Shape dimension

Shape dimension:96mm×96mm×96mm

Opening Size:92mm×92mm

Thickness of mounted panel

1.5mm~6.0mm

Weight

0.37kg

Electricity supply

(176~264)VAC,47~63Hz

Internal storage

48M bytes Flash

External storage

U disk support (standard USB2.0 communication interface)

The maximum power consumption

20VA

Relative humidity

(10~85)%RH(No condensation)

Operating temperature

(0~50)℃

Transport and storage conditions

temperature (-20~60)℃,Relative humidity (5~95)%RH(No condensation)

Altitude:<2000m,Except for special specifications
