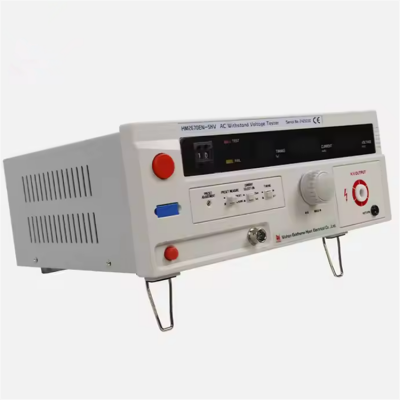

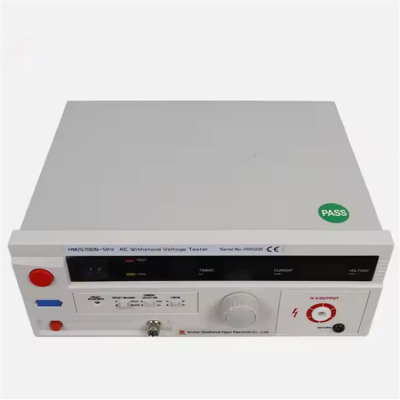

Musktool-MS2670CN Electric High Accuracy AC 5KV & AC 20mA Pressure Hipot Tester Withstand Voltage Tester
Brief Introduction
| MS2670EN type withstand voltage tester is an ac high voltage safety measurement instrument, widely used in electronic instruments, electronic equipment, electronic components, electrical equipment, bakelite appliances, rubber, high voltage cable and motor withstand voltage test, also applicable to household appliances withstand voltage test. |
Parameter
| 1.Testing voltage:AC:0.5kV～5kV±5% |
| 2.Leakage current setting value:AC：0.2～20(mA) adjustable |
| 3.Leakage current setting accuracy:±5% |
| 4.Output power:100VA. |
| 5.Output waveform: 50Hz Sine waveform |
| 6.Timing:1～99（s）±5%manual∞adjustable. |
| 7.Power source:AC：220V±10%50Hz±2Hz。 |
| 8.Environment:RH≤75%RH, Temperature :0℃～40℃。 There is no strong electromagnetic interference source around, no large amount of dust and corrosive gas, good ventilation. |
| 9.Power loss: quiescent power drain＜30VA |
