Musktool-BPS3M-TDT Autonics Distributors Sensors BPS3M-TDT BPS3M-TDTL BPS3M-TDT-P BPS3M-TDTL-P Photoelectric Switch Autonics
Product descriptions from the supplier

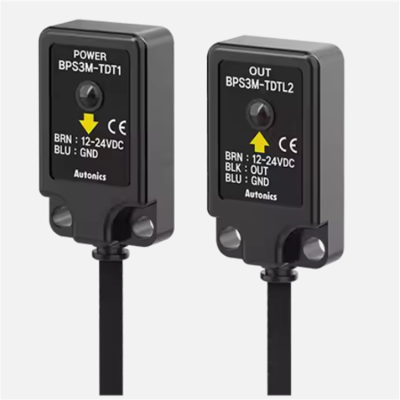

Autonics BPS3M-TDT BPS3M-TDT1 BPS3M-TDT2 |
| Sensing type : | Through-beam type |
| Sensing distance : | 3m |
| Sensing target : | Opaque material of min. Ø5mm |
| Light source : | Infrared LED(850nm) |
| Response time : | Max. 1ms |
| Power supply : | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Operation mode : | Dark ON |
| Control output : | NPN open collector |
| Sensing type | Through-beam type | |
| Sensing distance | 3m | |
| Sensing target | Opaque material of min. Ø5mm | |
| Light source | Infrared LED(850nm) | |
| Response time | Max. 1ms | |
| Power supply |
| |
| Current consumption | Emitter/Receiver: Max. 20mA | |
| Sensitivity adjustment | Sensitivity adjuster | |
| Operation mode | Dark ON | |
| Control output | NPN open collector | |
| Connection type | Cable type(Ø3, 2m) | |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) | |
| Environment_Ambient temperature | -25 to 65℃, storage: -25 to 70℃ | |
| Protection structure | IP67 | |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH | |
| Material | Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum | |
| Weight | Approx. 66g |
