Musktool-ETCR017AD AC-DC clamp leakage current transformer
Musktool-ETCR017AD AC-DC clamp leakage current transformer
Musktool-ETCR017AD AC-DC clamp leakage current transformer
Musktool-ETCR017AD AC-DC clamp leakage current transformer
Musktool-ETCR017AD AC-DC clamp leakage current transformer
Musktool-ETCR017AD AC-DC clamp leakage current transformer

Musktool-ETCR017AD AC-DC clamp leakage current transformer

2023-07-06 17:37:21

Musktool-ETCR017AD AC-DC clamp leakage current transformer

  • Main Feature : range: 0mA~50.0A,Corresponding output DC voltage: 0mV~600mV Line voltage: below 600V CT structure: clamp CT size: 16mm x 18mm
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Product  Introduction

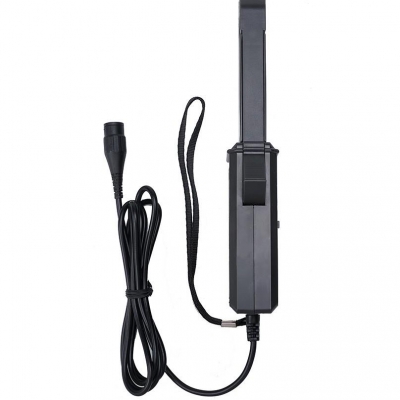

Musktool-ETCR017AD AC/DC clamp leakage current transformer, suitable for online detection of AC/DC current and leakage current with high precision below 600V, measuring range: AC/DC 0mA~50A, corresponding output AC/DC 0~600mV, jaw size 16mm x 18mm. The transformer adopts a clamp-shaped CT structure, which can be measured without disconnecting the measured line. The slender clamp head is especially suitable for places with dense wiring. The permalloy iron core is used, which has strong anti-interference ability and ensures the accuracy of measurement. and stability. It adopts non-contact measurement method, which is safe and simple to operate, and can be connected to industrial control devices, data recorders, oscilloscopes, high-precision digital multimeters and other equipment.


Technical parameter

1. Range and accuracy

RangeresolutionAccuracy class
0mA~50A AC/DC1mA3

2. Other parameters

power supply  9VDC 6F22
CT size  16mm×18mm
Range  0mA50A AC/DC
output signal  10mV/1A or 100mV/1A (manual shift)
Resolution  AC/DC 1mA
Accuracy class  ±3.0%
phase error  ≤3°
output method  Sense current output
Output Interface  BNC plug/4.0mm dual banana plug/3.5mm audio plug (optional), cable length 1.5m
Clearing method  ZERO knob reset
working frequency  DC~400Hz
Security Level  CATⅢ600V
Operating temperature  -15°C50°C
Dielectric strength  AC 3700V/rms (between core and case)
Clamp quality   About 202g
physical dimension  Length x width x height: 215mm x 65mm x 34mm

Model Comparison

nameInput current range (A)Input (mA)output (mv)Clamp head size (mm)errorDC power supply (V)
007ADAC/DC:5~501001Φ73.0%9
AC/DC:0~5101Φ73.0%9
017ADAC/DC:5~50100116x183.0%9
AC/DC:0~510116x183.0%9
030ADAC/DC:0~60100125x303.0%9
035ADAC/DC:0~10001130x351.0%9
068ADAC:0~100010001F682.0%9
DC:0~200010001F682.0%9
