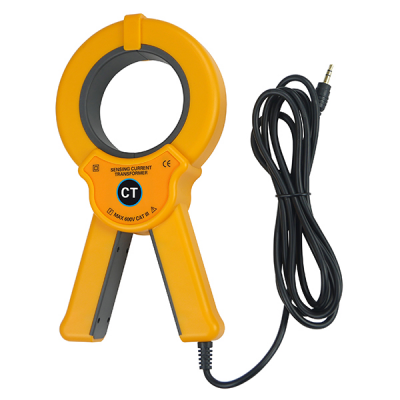

ETCR070-AC 0mA ~ 1000A,Φ70mm,R Type Clamp Current Sensor

Main Feature : 1: AC large current, high harmonic current, phase, electric energy, power, power factor and other industrial electricity consumption and electricity metering detection. 2: Input current range: 0mA ~ 1000A 3: CT Size: Φ70mm. 4: Sensor Dimensions: 223mmX120mmX39mm 5: Weight:680g 6: Safety class: CATIII 600V 7: Certificate:ROHS 8: Working temperature: -15°C~60°C
Serial No. :

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

INTRODUCTION

AC large current, high harmonic current, phase, electric energy, power, power factor and other industrial electricity consumption and electricity metering detection. Apply for industrial control device, oscilloscope, harmonic analyzer, path analyzer, double clamp earth resistance tester, cable fault tester, power quality analyzer.

MAIN FEATURES

Clamp structure, no need to interrupt the power supply and disconnect the circuit in testing, easy to operate, fast, safe and reliable.
Input current range: 0mA ~ 1000A, output signal: mA/A;mV/A;1A;5A
Output interface: BNC plug/ 4.0mm double banana plug/φ3.5mm Audio plug/Aviation plug(optional), wire length: 2m
CT Size: φ70mm.
Sensor Dimensions: 223mmX120mmX39mm
Weight:680g
Safety Level:CAT III 600V
Certificate:ROHS
Working temperature: -15°C~60°C
The input current, output signal and output interface of the sensor can be customized according to customer requirements.

SPECIFICATION

Model	Input Current	Output Signal	Frequency	Secondardy Load	Accuracy Class	Series
Musktool-ETCR070	0mA~300A	100mA	10Hz~100kHz	0~10A≤500Ω, 0~100A≤50Ω, 0~1000A≤5Ω	0.5	L0701
	0mA~400A	200mA			0.5	L0702
	0mA~600A	600mA			0.5	L0703
	0mA~1000A	250mA			0.5	L0704
	1A~1000A	1mV/A		≥100kΩ	1	Y0701

Lable: 0mA ~ 1000A,Φ70mm clamp-current-sensor clamp-current-transformer clamp-CT leakage-current-sensor
