INTRODUCTION

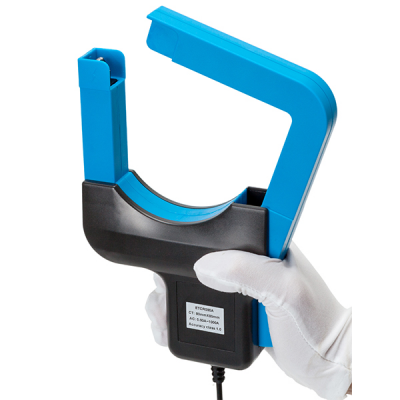

| Musktool-ETCR080A Large Caliber Clamp current sensor for AC current, high harmonic current, phase, power, power factor and other detection. Range: AC 0.0A～2500A, jaw size is 80mm x 80mm. The sensor adopts the clamp-shaped structure, which can be measured without disconnecting the measured circuit. The permalloy iron core and double-layer shielding technology are used to ensure the accuracy and stability of the measurement. Non-contact measurement methods are adopted, and the operation is safe and simple. It can be connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, harmonic analyzers, power quality analyzers, and high-precision digital multimeters. |
1. Coil tap 2. Coil tap 3. Lead wire (2m) 4. Clamp 5. Trigger (open and close the clamp)
(Note: The coil tap can be bare wire or standard multi-meter plug)
Specification
| Function | Description | |
| Function | AC current、higher harmonic current、phase、power energy、power、power factor measurement | |
| Model | Musktool-ETCR080A | Musktool-ETCR080A-3V |
| Range | 0.00A～1000A | |
| Resolution | 0.01A | |
| Accuracy Class | 1.0 | |
| Phase Error | ≤2° | |
| Turn Ratio/Output Voltage | 2000:1 / 0～3V(6Ω) | |
| Reference Load | 0~ 10A ≤ 300Ω 0 ~ 100A ≤ 30Ω 0 ~ 1000A ≤ 3Ω | |
| Clamp Size | 80mm×80mm | |
| Weight | 780g | |
| Output Interface | Shielded wire 1.5m, wire terminal interface: Φ3.5mm Audio plug/BNC plug/4.0mm Double banana plug(Can be customized) | |
| Frequency | 45Hz～100KHz | |
| Insulating Strength | AC3700V/ms ( between the core and coil) | |
| Safety Class | CATⅢ600V | |
| Output Method | Current sensing output(can output current signal or voltage signal) | |
| Working Temperature | -15℃～50℃ | |
Selection Guide
| Model | Range | Resolution | Accuracy Class | Phase Error | Turn Ratio/Output Voltage | Reference Load | Clamp Size |
| Musktool-ETCR030A | 0.00A～300A | 0.01A | 1.0 | ≤2° | 3000:1 | ≤30Ω | 25mm×30mm |
| Musktool-ETCR030A-3V | 0～3V(30Ω) | ≥100KΩ | |||||
| Musktool-ETCR040A | 0.00A～500A | 0.01A | 1.0 | ≤2° | 4000:1 | ≤20Ω | 35mm×40mm |
| Musktool-ETCR040A-3V | 0～3V(20Ω) | ≥100KΩ | |||||
| Musktool-ETCR068A | 0.00A～800A | 0.01A | 1.0 | ≤2° | 2000:1 | ≤10Ω | Φ68mm |
| Musktool-ETCR068A-3V | 0～3V(7.5Ω) | ≥100KΩ | |||||
| Musktool-ETCR080A | 0.00A～1000A | 0.01A | 1.0 | ≤2° | 2000:1 | ≤8Ω | 80mm×80mm |
| Musktool-ETCR080A-3V | 0～3V(6Ω) | ≥100KΩ |
