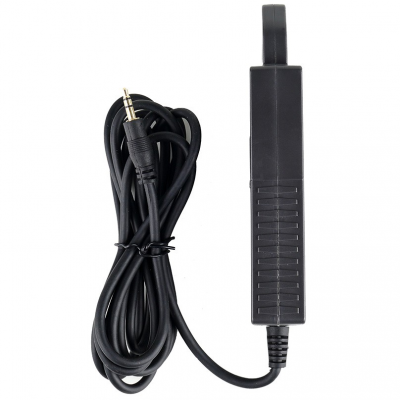

ETCR014 Needle-nose pliers current sensor

  • Main Feature : 1. High accuracy AC leakage current、higer harmonic current、phase、power energy、power 、power factor measurement etc. 2. Range:0.00mA~100A AC 3. Turn Ratio:2500 :1 4. Resolution: 0.01mA AC 5. Accuracy Class: 1.0 6. Line Voltage:Below 600V 7. CT Structure:Clamp 8. CT Size:Φ14mm
  • Serial No. :
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

INTRODUCTION

Musktool-ETCR014 Needle-nose pliers current sensor, suitable for high-precision AC leakage current, current, higher harmonic current, phase, power, power, power factor and other detection. Range: 0.00mA~30.0A, jaw size is Φ14mm. Current clamp uses Permalloy iron core, double shield technology, and strong anti-jamming capability to ensure the accuracy and stability of measurement.

The sensor adopts a clamp structure. It does not need to disconnect the circuit under test. It adopts non-contact measurement method. The operation is safe and simple. It can connect phase detection analyzer, industrial control device, data recorder, oscilloscope, harmonic analyzer, power quality analyzer. , high-precision multi-degree digital watches and so on.

ETCR014 Needle-nose pliers current sensor

SPECIFICATION

FunctionDescription
Clamp Size Φ14mm
Range 0.00mA~100A AC
Resolution 0.01mA AC
Accuracy Class 1.0
Phase Error ≤2°
Reference Load 0~1A≤300Ω;0~10A≤30Ω;0~100A≤3Ω
Turn Ratio2500:1
Output Method Current sensing output
Output Interface
Shielded wire 1.5m, wire terminal interface: φ3.5mm Audio plug/BNC plug/4.0mm Double banana plug(Can be customized)
Detection Method Clamp CT
Frequency 45Hz~100kHz
Safety Class CATⅢ600V
Working Temperature -15℃~50℃
Insulating Strength AC 3700V/rms (between the core and coil)
Weight 194g
Dimension 142mm×46.7mm×22.6mm

Selection Guide

ModelRangeResolutionAccuracy ClassPhase ErrorTurn RatioReference LoadClamp SizeWeight
Musktool-ETCR0080.00mA~30.0A AC0.01mA AC1.0≤2°

2500:1

0~300mA≤300Ω

0~3A≤30Ω;

0~30A≤3Ω

φ8mm175g
Musktool-ETCR0140.00mA~100A AC0.01mA AC1.0≤2°

2500:1

0~1A≤300Ω;

0~10A≤30Ω;

0~100A≤3Ω

φ14mm194g
