ETCR9020 High voltage and low Voltage Clamp Leakage Current Meter

  • Main Feature : 1. Measurement of H/L voltage AC leakage current (operate with insulation rod above 600V) 2. Range: 0.00mA ~ 60.0A 3. Resolution: 0.01mA 4. Peak Hold, Data Storage: 99 Groups 5. Line Voltage: Test of the wire with insulation skin below 60kV, test of bare wire below 35kV (operate with insulation rod) 6. CT Size: Φ48mm
  • Serial No. :
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

INTRODUCTION

Musktool-ETCR9020 series H/L Voltage Clamp Leakage Current Meter break through the traditional structure, specially designed and manufactured for measuring high voltage current, the meter adopts CT technology and mask digital integration technology, the instrument composed of special clamp current meter and high voltage insulation rod, among theMusktool-ETCR9000B type ---wireless transmission of test data, equipped with wireless receivers, which can receive the tested data within 30M straight-line distance. If not use insulation rod, which can be used as high accuracy low voltage clamp current meter.

Musktool-ETCR9020 series H/L Voltage Clamp Leakage Current Meter connect with insulation rod, which can use for high voltage line current measurement of the wire with insulation skin below 60KV or bare wire below 35KV, online current measurements, also with peak hold, data hold and data storage and so on others functions, the special clamp current meter convenient to clamp or withdraw the tested wire operate by push or pull back the insulation rod, save time and convenient. It is widely used in substations, power plants, and industrial and mining enterprises, inspection stations, electrical maintenance departments for current detection and electrical field operations. It also can replace the H/L voltage transformation ratio tester, which can measure the H/L voltage current of the primary circuit and the secondary circuit respectively, and then calculate the H/L voltage transformation ratio. The insulation rod is light, has the characteristics of moisture-proof, high temperature resistance, impact resistance, bending resistance, high insulation, scalable and so on.

SPECIFICATION

FunctionDescription
Function H/L voltage AC leakage current measurement
Power Supply DC 6V(1.5V AAAx4)
Test Mode Clamp CT, integration method
Display Mode 4 digital LCD display, backlight function, suitable for dim place
LCD Size 47mm×28.5mm
Meter Size 76mm×255mm×31mm
CT Size Φ48mm
Sampling Rate 2 times/second
Measurement Range 0.00mA~60A (50/60Hz automatic)
Resolution 0.01mA
Shift 0.00mA~60A full-automatic
Test Accuracy (23℃±5℃, below 80%RH) 0.00mA~999mA  :  ±1%±5dgt
1.00A~60.0A :  ±1.5%±5dgt
Data Storage 99 groups, in storage process "MEM" symbol display, "FULL" symbol flashes display indicate storage full
Peak Hold Automatically hold the test value at high point. Press PEAK key in the test mode ,the PEAK lamp lights up. The peak hold function is enabled, press PEAK key once again cancel this function
Line Voltage Test of the wire with insulation skin below 60kV, test of  bare wire below 35kV (operate with insulation rod)
Data Hold Press HOLD key to hold data in test mode, “HOLD” symbol display, press HOLD key once again cancel this function
Data Access "MR" symbol display, can look up all storage data
Overflow Display Exceed measure range overflow function: "OLA" symbol display
Auto Shut Down 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption
Battery Voltage When battery voltage is lower than 4.8V, low battery voltage symbolwill display and remind to replace battery.
Meter Weight 3450g (include insulation rod)
Working Environment -10oC~50oC, below 80%rh
Store Environment -10oC~60oC, below 70%rh
Interference No interference of 315MHz and 433MHz same frequency signals
Insulation Rod Size Φ32mm, 1m/pcs(5pcs)
Insulation Strength AC110kV/rms(all 5pcs insulation rod connect, between the two ends)

Selection Guide

ModelDescriptionRangeResolutionClampNote
Musktool-ETCR9000H/L Voltage Clamp Current Meter0mA ~ 1200A1mAΦ48mm Base type
Musktool-ETCR9000BWireless H/L Voltage Clamp Current MeterWireless type
Musktool-ETCR9020 H/L Clamp Leakage Current Meter0.00mA~60.0A0.01mAΦ48mm Base type
Musktool-ETCR9020B Wireless H/L Clamp Leakage Current MeterWireless type
Musktool-ETCR9100H/L Voltage Clamp Current Meter0.00mA ~ 600A0.01mAΦ33mm Base type
Musktool-ETCR9100BWireless H/L Voltage Clamp Current MeterWireless type

Packing Details


Package Outer Package Carton
Inner Package Cloth bag

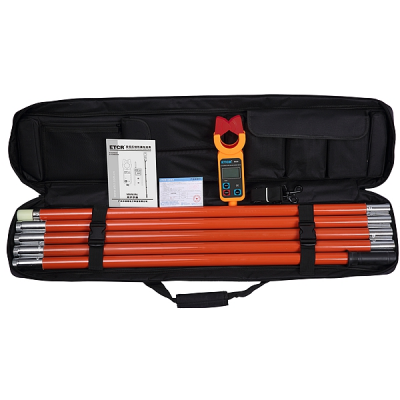

Accessory Meter 1 PCS
Insulation Rod (1M) 5 PCS
Tool Bag 1 PCS
Manual 1 PCS
Certificate 1 PCS
Warranty Card 1 PCS
