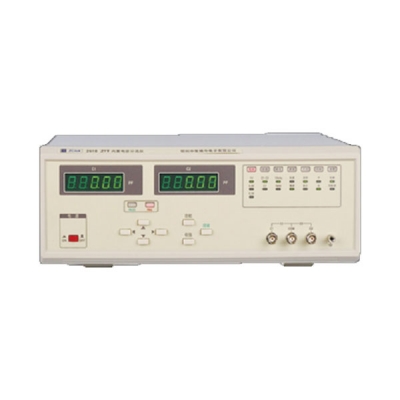

Musktool-ZC2617D/ZC2618D capacitance measuring instrument

Description

Performance characteristics (ZC2617D/ZC2618D)

Mid-range capacitance measuring instrument with improved performance

Good test stability

Strong impact resistance

Reasonable function configuration

Fixed output impedance, especially suitable for the measurement of ceramic capacitors

Keyboard lock function

Two output impedances of 30Q and 100Q

RS232, HANDLER interface

Technical index

Model

ZD2617D

ZC2618D

Measurement function

Test parameter trigger mode

C-D、R-D

Basic accuracy

0.1%

0.1%

Equivalent Circuit

Series Parallel

Series Parallel

Range method

Automatic, hold

Automatic, hold

Trigger method

Internal, manual, external

Internal, manual, external

Test speed

Fast: 16 times/sec

Medium speed: 8 times/sec

Slow speed: 2 times/sec



Fast: 16 times/sec

Medium speed: 8 times/sec

Slow speed: 2 times/sec

Calibration function

Open circuit, short circuit, sweep frequency clear

Open circuit, short circuit, sweep frequency clear

Display method

Direct reading ∆/∆/%

Direct reading/∆/∆%

monitor

5-bit resolution, dedicated with backlight

LCD display



5-bit resolution, dedicated with backlight

LCD display



Test signal

Measuring signal frequency

100Hz.120Hz.1kHz、10kHz

20kHz、40kHz.50kHz、100kHz

100H2、120Hz、1kHz、10kHz

Measuring signal level

0.1Vrms、0.3Vrms.1.OVrms

Output impedance

30Ω、100Ω

30Ω、100Ω

Measurement display range

R

0.001Q ~ 99.999MQ

C

0.001 pF ~ 99999ΩF

0.001 pF ~ 99999ΩF

D

0.0001 ~ 9.9999

Δ

-99.99% ~ 99.99%

Comparator and interface

Comparators

Five grades sorting, three grades are qualified, one grade is unqualified, and one subsidiary grade

Five grades sorting, three grades are qualified, one grade is unqualified, and one subsidiary grade

Interface

RS232C (standard), HANDLER (optional)

Volume

320mmx140mmx360mm

320mmx140mmx360mm

Weight

~3.5kg
