WBGT index instrument

  • Main Feature :
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Introduction

Black bulb temperature (TG) Natural wet bulb temperature (TN)
Ambient (dry bulb) temperature (TA)
Relative humidity (RH) (not involved in WBGT calculation, display and screen reference values)
Based on the above measurements, Musktool-JT2020-2 can calculate:
WBGT (in) index, i.e. wet bulb black bulb temperature index (in case of no solar radiation)
WBGT (out) index, i.e. black bulb wet bulb temperature index (when there is solar radiation)

WBGT, also known as the temperature index of wet bulb and black bulb, is a basic parameter to evaluate the heat load of human contact working environment. WBGT shows an index that is related to the metabolism of specific jobs that produce heat intensity.
WBGT index is composed of three parts: natural wet ball TNW, black ball TG and dry ball ta (sometimes).
The calculation formula is as follows:
Without solar radiation indoors and outdoors: WBGT = 0.7tnw + 0.3tg
In case of outdoor solar radiation: WBGT=0.7Tnw+0.2Tg+0.1Ta
Where TNW = natural wet bulb temperature TG = black bulb temperature
TA = dry bulb temperature / air temperature

Features

Musktool-JT2020-2  WBGTindex instrument

For occupational health andsafety measurement

WBGTmeasurement of thermal environment in high temperature workplace with sensor kit specially used for occupational health measurement

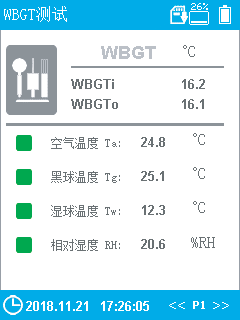

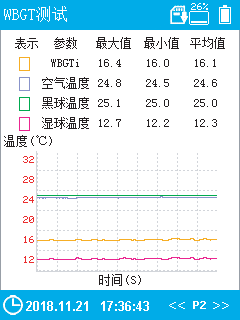

图片关键词图片关键词

Technical Specifications

Name

Technical Specifications

Structural specification

Size

175X92X38mm

Material

ABS+ wrap

Protection

IP30

Non-slip

With anti falling wrist strap connector, detachable wrist strap

fixed

1 / 4 "threaded connection, standard tripod can be connected

Power supply

battery

lithium battery 5000mAh

Endurance

Not less than 96 hours (all channel access sensors)

External power

DC5V,1A;Micro USB

Datalogger specifications

Acquisition channel

1.  Digital channel: 3 channels at the top of the instrument, 6-core M12 aviation connector, which can be connected to a series of sensors with digital signal output, such as temperature, humidity, temperature, wind speed, etc.

2.  Thermocouple channel: bottom 2 channels, K-type thermocouple.

3. Analog channel: 2 channels at the bottom, which can be connected with heat flow, radiant heat, etc.; acquisition voltage range 0-2v; resolution 0.01 MV; accuracy 0.5%.

Performance specification

Display

Color 3.5-inch touch LCD display

Operational

Chinese (default) / English (optional)

Storage interval

10 seconds -- 90 minutes and 59 seconds, any setting

Data storage

SD card, mass storage

Output

Export storage data, export spreadsheet file format.csv

Software

JTSoft-DM, Win7 or newer

Other

Operating

0—60°C0~90%RH
