Musktool-Vibration Meter GM63A

  • Main Feature :
  • Serial No. : Lisa0490
Contact US For Quotation  Email:464560351@qq.com  Whatsapp&Wechat:+8618620373879

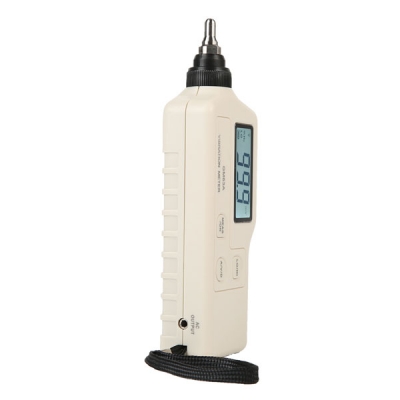

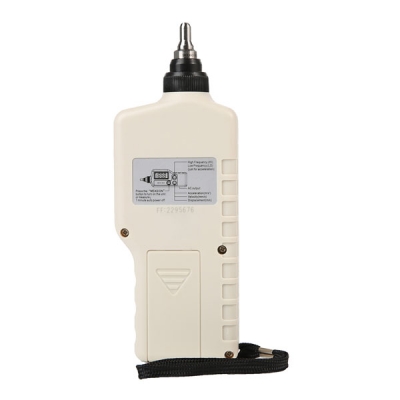

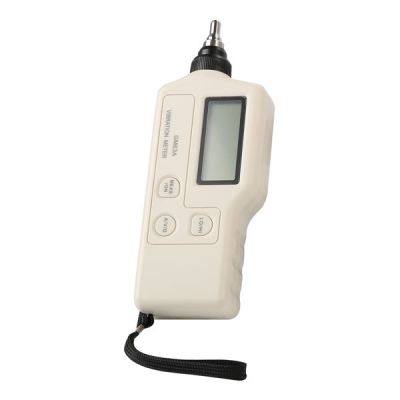

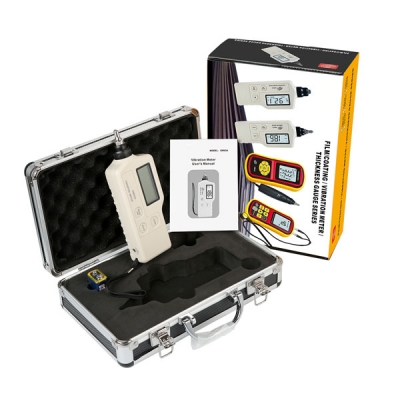

Musktool-Vibration Meter GM63A

This product adopts piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.

Features

Vibration Meter possesses the following features:

1.Simple to use, the structure is compact, portable for carrying along with measurement.

2.Visually display measurement value and state.

3.Acceleration, velocity and displacement measurement.

4.Different vibration frequency selection.

5.High sensitivity probe for accurate measurement Pro-
vides long and short probe head ,each one is suitable
for different situation measurement.

6.Equipped with AC signal output interface.

7.Low power indication.

8.Auto power-off.

9.LCD backlight.

Specifications

Technical parameter
Technical specification
Vibration pickup
Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration
0.1~199.9m/s² peak
Measurement range of velocity
0.1~199.9mm/s rms
Measurement range of displacement
0.001~1.999mm p-p
Velocity and displacement range is limited by
acceleration199.9m/s²
Measurement accuracy
±5%±2digits
Measurement frequency range of acceleration
10Hz~1KHz (LO) 1KHz~15KHz (HI)
Measurement frequency range of velocity
10Hz~1KHz (LO)
Measurement frequency range of displacement
10Hz~1KHz (LO)
Displays update cycle
1 second
LCD display
3 1/2 digits display
Single output
AC output 2 V peak (display full scale)
Load impedance 10KΩor more earphones
can be connected
Power supply
9V Alkaline battery
Static current
≤20μA
Operating current
≤25mA
Battery life
20 hours continuous use
Auto power-off
Turns off automatically in 60 seconds
LCD backlight
7 seconds
Operating temperature range
0~40℃
Operating humidity range
30~90%RH
Low battery indication
6.9V±0.2V
Dimensions
67x30x183mm
Weight
182g ( including battery)
