UT-890A UOTEK USB to RS-485/422 Converter

Main Feature :
Serial No. : Zoe210

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-UT-890A UOTEK USB to RS-485/422 Converter USB 2.0

● Standards: USBV1.1, 1.0, 2.0, RS-485, RS-422 EIA

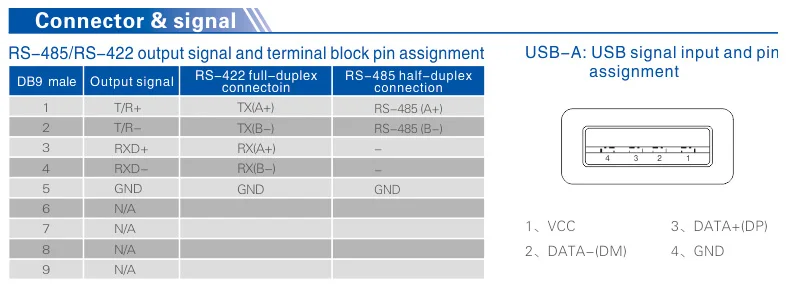

● USB Signal: VCC, DATA+, DATA-, GND, FG
● RS-485 signal: T/R+, T/R-, GND
● RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
● Working mode: Asynchronous, point to point or point to multi-point, 2 wires half-duplex or 4 wires full-duplex
● Direction control: Adopts traffic direction auto control technology
● Baud rate: 300-921.6Kbps auto-detect serial signal
● Loading capacity: Supports point to multi-point communication, allows to connect 32 sets RS-422 or RS-485 device
● Transmission distance: 1,200m(9,600bps) for RS-485/422, no more than 5m for USB
● Port protection: surge, ±15KV ESD protection
● Connector: USB-A male, DB9 male
● LEDs for indicating PWR TXD, and RXD activity
● Transmission media: Twisted-pair or shielded cable
● Length: 1.5m
● Operating temperature: -40℃ to 85℃

● Relative humidity: 5% to 95%
● Transmission distance: 0-1,200m
● Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
