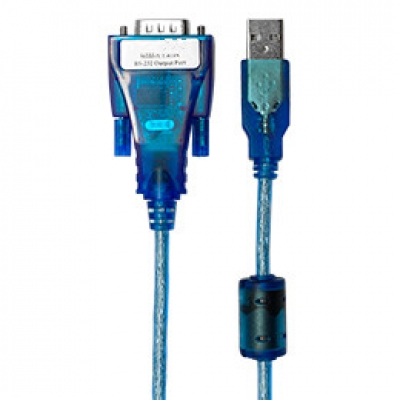

UT-810N UOTEK USB to RS-232 converter

Main Feature :
Serial No. :

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-UT-810N UOTEK USB to RS-232 converter

Standards: USB2.0 full speed

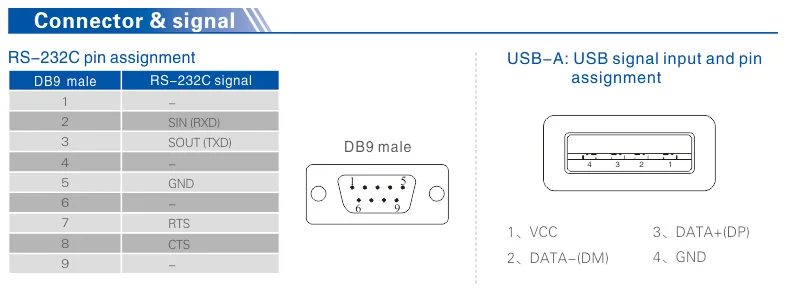

USB signal: VCC, DATA+, DATA-, GND
RS-232 signal: TXD, RXD, CTS, RTS
Direction control: adopts data direction auto control technology, auto control the data transmission direction
Baud rate: 300-115,200bps, auto detection
Transmission distance: RS-232 no more than 15m, USB no more than 5m
USB ESD protection: Contact discharge 8KV, air contact discharge 15KV
Connector: USB-A, DB9 male
Working voltage & current: DC5V±0.25V(current<200mA)

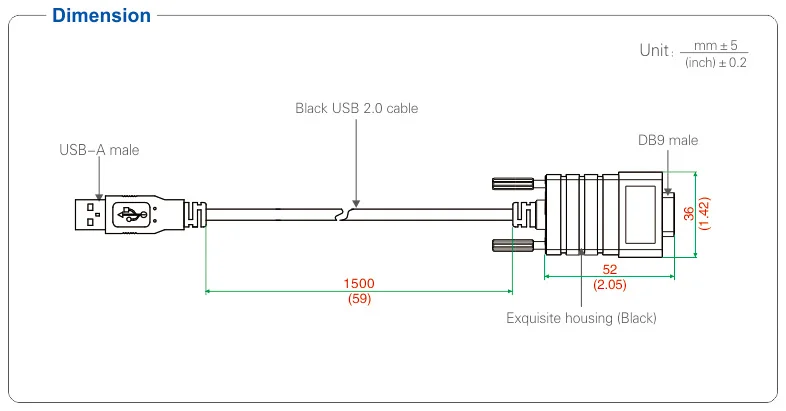

Length: 1.5m
Working environment: -25℃ to 70℃, relative humidity 5% to 95%
Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux

USB to serial port converter allows you easy to establish the reliable connection. USB supports plug and play, hot swap; this makes you easy to connect RS-232 port. This design makes you convenient to connect mobile phone, digital camera, ISDN-TA, Modem with as high as 1Mbps transmission rate.
