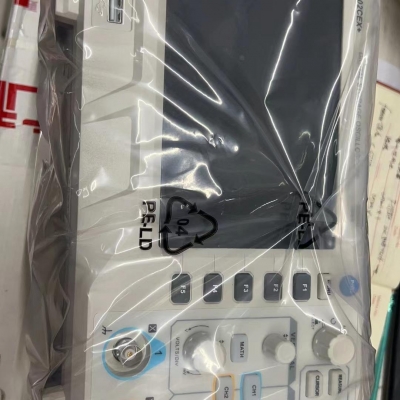

Xtester- UNI-T UTD2202CEX+ 8 Inch TFT LCD Digital Storage Oscilloscope 100MHz Bandwidth 2 Channels 800X480 WVGA Phosphor

Main Feature :
Serial No. : zoe022

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Xtester- UNI-T UTD2202CEX+ 8 Inch TFT LCD Digital Storage Oscilloscope 100MHz Bandwidth 2 Channels 800X480 WVGA Phosphor

Product Description

1. 100MHz bandwidth, 1GSa/s real-time sampling rate
2. 2 channels
3. 25kpts memory depth
4. 20,000wfms/s waveform acquisition rate
5. 2ns/div~50s/div time-base
6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video
7. Calibration signal output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
8. Input calibration signal only by pressing a button
9. 10Mpts waveform recording
10. 8-inch TFT LCD, WVGA (800×480)
11. USB OTG and Pass/Fail interfaces

Specification

Specifications	UTD2102CEX-II
Channels	2
Bandwidth	100MHz
Sample Rate	1GS/s
Rise Time	≤3.5ns
Memory Depth	25kpts
Waveform Acquisition Rate	≥2000wfms/s
Vertical Sensitivity (V/div)	1mV/div~20V/div
Timebase Range (s/div)	2ns/div~50s/div
Storage	Setup, Wave, Bitmap
