Musktool- TM7100 Handheld Fluxmeter portable measuring instrument

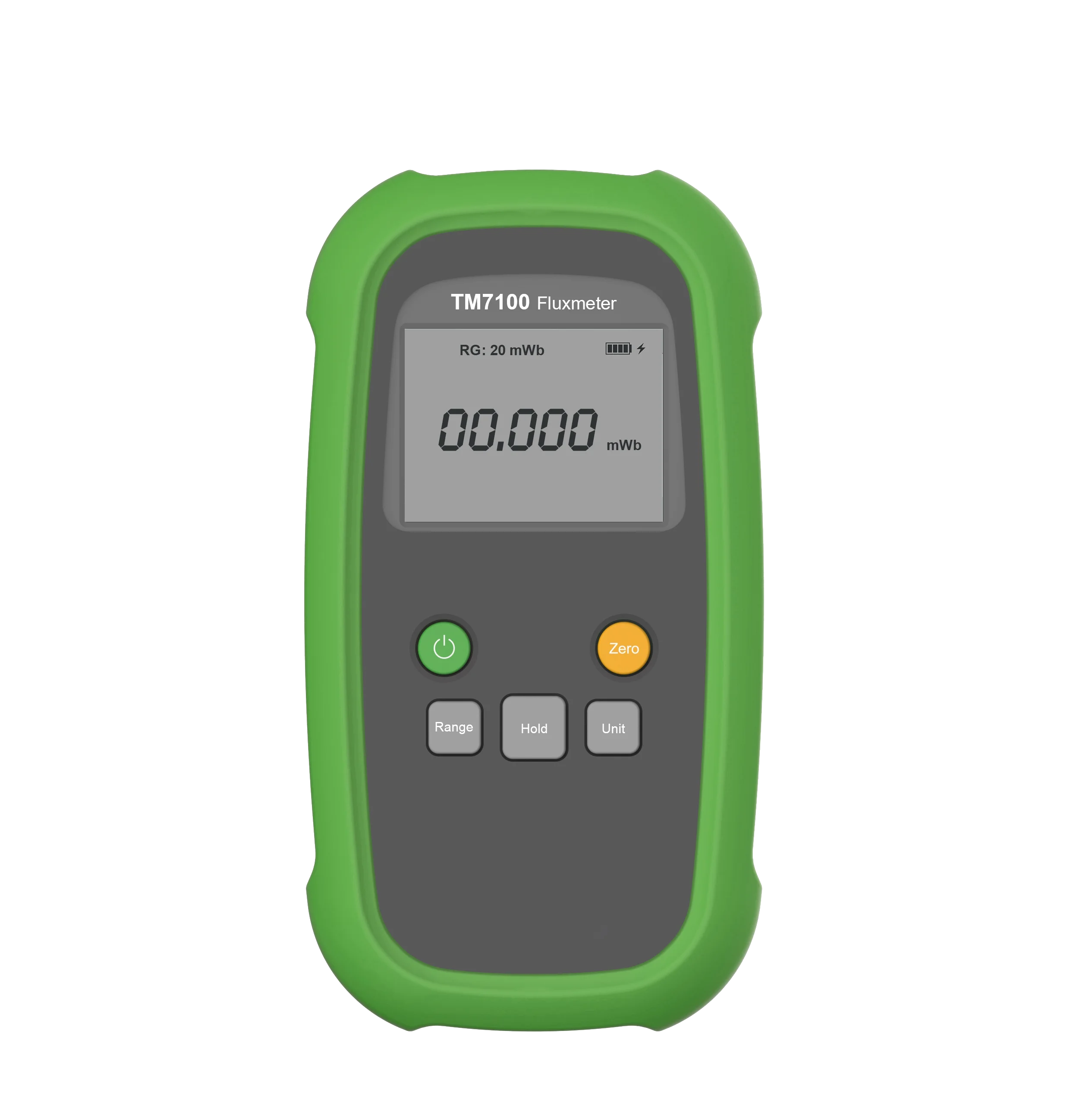

The TM7100 is a portable measuring instrument, designed with a high speed microprocessor and a low drift electronic integrator. It’s applied for measuring spatial magnetic field or permanent magnet flux with types of coils.

1. Summary

The TM7100 is a portable measuring instrument, designed with a high speed microprocessor and a low drift electronic integrator. It’s applied for measuring spatial magnetic field or permanent magnet flux with types of coils.

2. Features

• Range:0.2 mWb~2 Wb.

• Accuracy: 1% or 2%.

• Drift after zeroing ≤ 2 μWb/min

• 4-digits display, minimum resolution 1 μWb

• Unit switch: mWb, Mx

• Maximum hold function

• One-key reset and zero drift

• Display support backlight and battery power.

• Lithium battery power supply.

• Small size, light weight.

• Support various of measuring coil.

• Conventional Flux Coil: Applied for measuring the magnetic flux of a single sample.

• Skateboard Coil: Applied for testing batch samples on the production line.

• Helmholtz Coil: Applied to the magnetic moment of the sample.

• Stator Coil: Applied for fast measurement of the magnetic flux of the stator core.
