Main Feature : Musktool-TM282D Ultrasonic Thickness Gaugethickness Testing Machinethickness Meter with A&B Scan
Serial No. : Owen0238

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

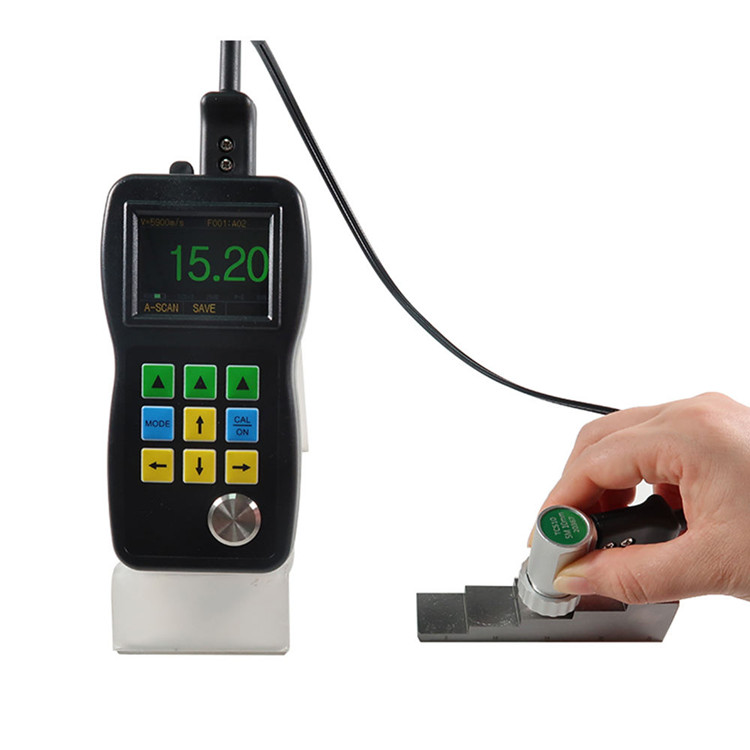

Musktool-TM282D Ultrasonic Thickness Gaugethickness Testing Machinethickness Meter with A&B Scan

More Practical Function

Difference/Reduction
Rate: Difference mode displays the difference between the actual value and the normal value.
Reduction rate calculates and shows the percentage of the thickness reduction when the material becomes thin. Typical application is to measure the metal material which is due to bending and becomes thin.

Information displays: LOS, min, max, large reading while displaying min at the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life remaining, gain - low, std, high, echo to echo symbol Max./Min.

Capture: On this mode, the current thickness, minimum thickness and the maximum thickness will be shown on the screen at the same time.

Alarm Mode: Dynamic change the color of thickness readings when alarming.

Update Rate: Selectable 4Hz, 8hz and 16Hz. 4Hz for ordinary application, when you need a quick scan, such as high temperature measurement, you can choose higher update frequency.

Multi- Languages Available: Chinese,English, Spanish, German.

Echo to Echo: Measures the metal thickness only (ignore paint and coatings)

Data logger: 99999 thickness data logger with ID point in linear or grid files ( 400 files)

Output: USB 2.0 full speed connector. DataView report software

Size: 156mm) (L) 76mm) (W) x 1.25" (38 mm) (H)

Weight: 285 g

Temperature: Gage Operating:-10° C to 50° C

The Difference Between TM281 Series Ultrasonic Thickness Gauge

	TM282	TM282D
Color Display	√	√
Live A-Scan	√	√
Time-based B-Scan	√	√
Control of Gain and Gate	√	√
Blanking	√	√
Thru-paint&coatings	×	√
Data Logger	×	×
DataView Software	×	×

Specifications of TM282DL Ultrasonic Thickness Gauge

Display Type	2.4'' color OLED, 320×240 pixels, display contrast 10,000:1
Operating Principle	Pulse echo with dual elemet transducers
Measuring Range	0.50mm to 508mm(0.02'' to 20.00''), depending on material, probe and surface condition;E-E Mode:3-50mm under condition
Measuring Resolution	Selectable 0.01mm, 0.1mm(selectable 0.001'', 0.01'')
Units	Inch or Millimeter
Rectify Mode	RF+, RF-, HALF+, HALF-, FULL
Display Mode	Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction	Automatic
Update Rate	Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range	500 to 9999m/s(0.0197 to 0.3939 in/μs)
Languages	English, French, German,spanish,Chinese
Alarm Settings	Minimum and Maximum alarms. Range of 0.25mm to 508mm (0.010'' to 20.00''). Dynamic waveform color change on alarm
Power Requirements	2 AA size batteries
Operating Time	Approximately 40 hours
Instrument Shut-off	Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature	-10℃ to +50℃(+10°F to +12°F )
Size	158mm × 76mm × 37mm (H × W × D)
Weight	285g including batteries

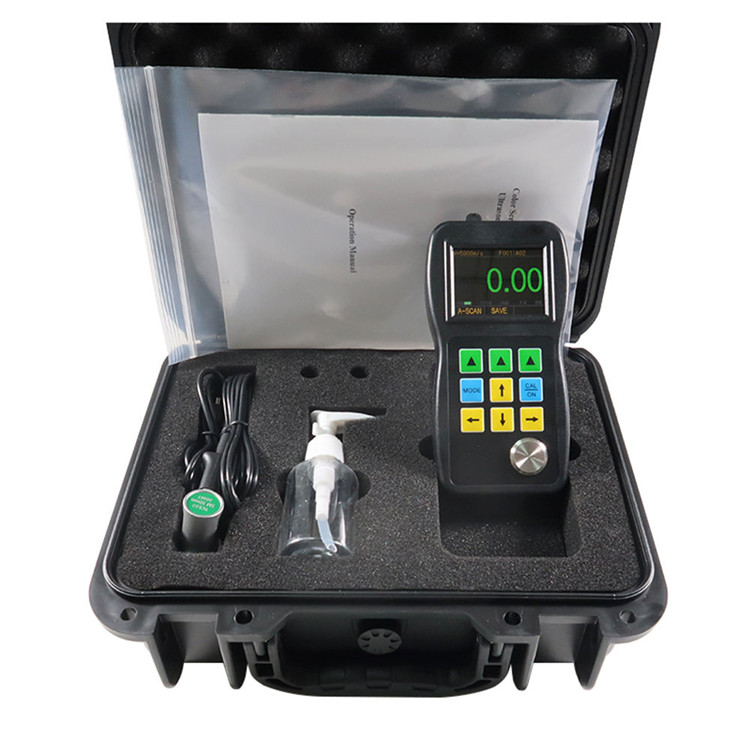

Standard Delivery TM282DL

Name	Quantity
Main body	1
Probe	1
Battery	1
Couplant	1
Carrying Case	1
Operating Manual	1
USB Cable	1
Software	1
