Musktool-Type EKL3 Short Circuit And Earth Fault Indicator
Musktool-Type EKL3 Short Circuit And Earth Fault Indicator
Musktool-Type EKL3 Short Circuit And Earth Fault Indicator
Musktool-Type EKL3 Short Circuit And Earth Fault Indicator

Musktool-Type EKL3 Short Circuit And Earth Fault Indicator

2023-07-07 11:32:00

Usage: Ring Main Unit Cable diameter: Less than 40mm Line Voltage: Less than35KV Ambient Temperature: -35℃≤T≤+75℃

  • Main Feature :
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

Main Function

1. Short circuit fault alarm indication: Short-circuit fault sensor installed on single phase cable, monitoring the current changes of the power supply line in time, when the current change value reach or exceed short circuit current action when the alarm set point (this value can be setting according to user requirements before producing),the short circuit fault sensor emit alarm signal, the signal through optical fiber sent to the indicator host, the corresponding fault indicator light flashing, Send out alarm indicator.

2. Earth fault alarm indication: earth fault sensors installed on the bifurcation unshielded part of three-phase cable, detection of three-phase cable of zero sequence current value, when its value reach or exceed the earth current action when the alarm set point(this value can be setting according to user requirements before producing), the earth fault sensor emit alarm signal,the signal through optical fiber sent to the indicator host, the earth fault indicator light flashing, Send out alarm indicator.

3. Battery low battery alarm indication: When the indicator host internal battery voltage drops to 2.5 V, generate alarm signal,to mention maintenance personnel change the battery, the alarm signal lasts about two months. Furthermore it equipped with an external power supply interface,can use an external power source.(Type B terminal 12 "-", 9 "+" Type A terminal 8 "+", 9 "-" AC/DC5V-10V).

4. Automatic reset: When the indicator emit alarm signals, In a set of automatic reset time, without manual reset, the indicator can be automatically reset.(Reset time: 4H.8H.12H.24H, open the host signs in the dial the code switch setting on its own)

5. Test and Reset: When the indicator emit alarm signals, press the indicator host "reset/test" button on the panel, can clear alarm status. In the normal state, hold down the indicator host "reset/test" button on the panel for 3 seconds, Panel on all the lights flashing 10 times.Type B also have relais working sound, this means the indicator is in normal working.

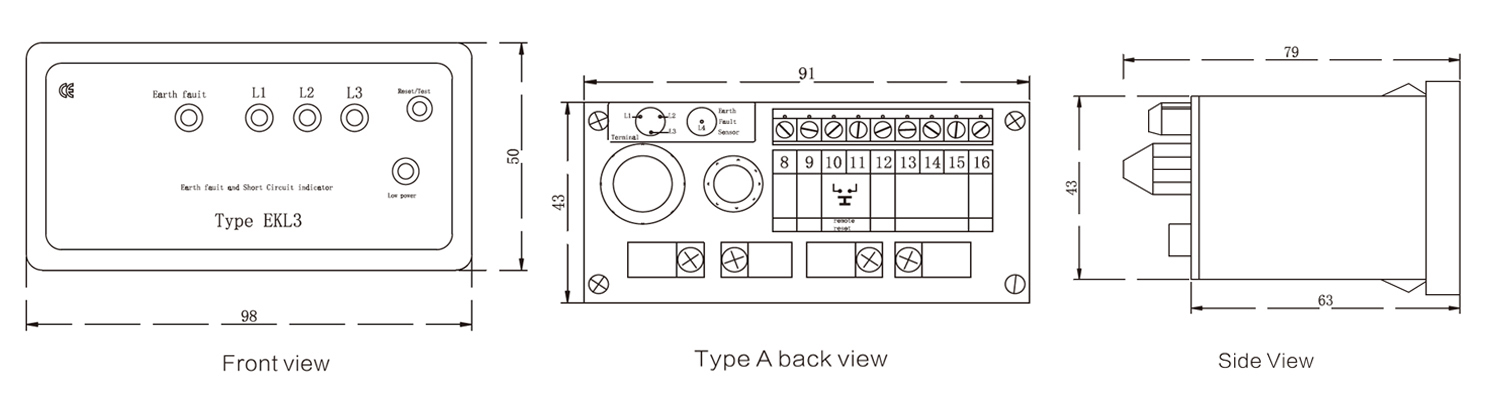

Product Installation Dimension Drawing

图片关键词

Technical Parameters

Ambient temperature:

-35℃≤T≤+75℃

Relative humidity:

≤85%

Pollution:

JP40

Automatic reset time:

4.8.12.24H (Default 12H)

Line voltage grade:

≤35KW

Battery capacity:

3.6V 2Ah Service life 5 Years

Relay capacity:

AC230V/2A

Earth fault warning current:

≥20A(Default 20A)

Protection class:

IP65

Short circuit  warning current:

≥100A(Default 800A)

Accuracy:< ±10%Action delay time:20-300ms
Short circuit withstand current:≥20kA 2SApplicable line diameter:≤Φ400mm
Weight of whole set:<1000gInstalling hole size:92mm×44mm
