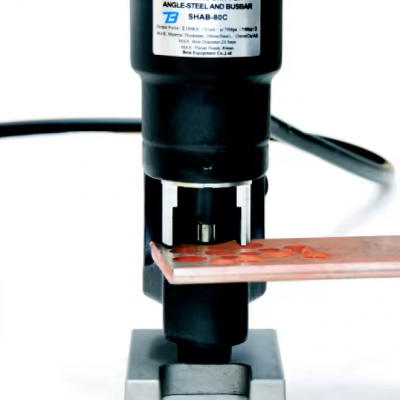

Xtester-SHAB-80C Hydraulic Busbar Cutting Punching Bending Machine Thickneed Max. 13mm

  • Main Feature :
  • Serial No. : monica0304
Contact Us For QuotationEmail:  464560351@qq.com  Whatsapp&Wechat:+8618620373879

Xtester-SHAB-80C Hydraulic Busbar Cutting Punching Bending Machine Thickneed Max. 13mm

Characteristic

1.Punch angle steel in L shape, I-beam in H shape, flat steel plate, Cu and Al busbar

2.Body is made of high strength steel

3.Quick punching with smooth punching surface without burr; positioning plate design for precise location without offset

4.Make punching safe and clean without punching chipping

5.Portable for mobile operation, also suitable to fix in workshop for batch cut work
6.Throat depth 80mm, punching work finished quicker and easier
7.Equipped with quick coupler for easy disassembly
8 Powered by single acting hydraulic pump

Technology features

Model

SHAB-80C
Output Force                                              31T
Rated Pressure                                                                                             700bar

Punching Thickness

Max. 13mm Cu/Al
Max. 10mm Steel
Throat Depth          80mm
Standard
Accessories
Ø10.5, 13.5, 17.5, 20.5mm;
Optional
Accessories
Ø8.5, 11.5, 15.5, 18.5mm
Weight13.5kg
PackingSteel Case

Description

Product NameHydraulic punching machine
Model NumberSHAB-80C
Punchining thicknessMax 13mm Cu/Al Max.10mm steel
Output Force31T
Warranty12 Months
Weight13.5kg
Packingsteel case
BrandBete
Standard accessories10.5 13.5 17.5 20.5
Optional accessories8.5 11.5 15.5 18.5
