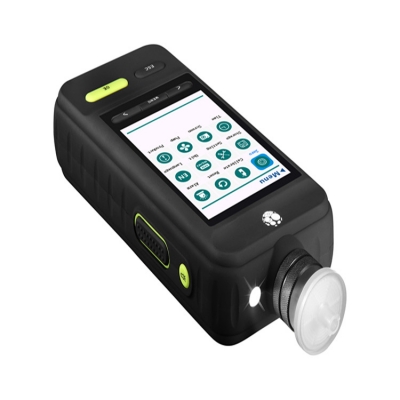

Musktool-Portable Nitrogen Purity Tester 99.999%VOL Nitrogen Gas Analyzer for Cylinder Package Storage

2025-07-21 10:54:59

Main Feature : Musktool-Portable Nitrogen Purity Tester 99.999%VOL Nitrogen Gas Analyzer for Cylinder Package Storage
Serial No. : Owen0098

Specification

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-Portable Nitrogen Purity Tester 99.999%VOL Nitrogen Gas Analyzer for Cylinder Package Storage

Functions

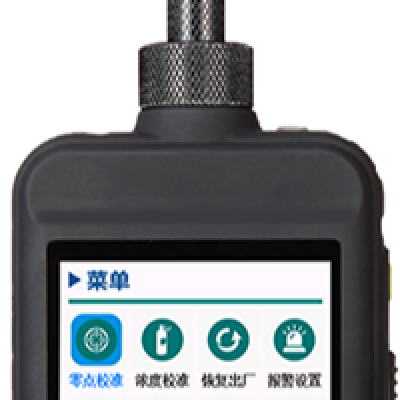

1. 3.5-inch large screen display, beautiful appearance, independent patent structure design With a 3.5-inch color screen, 150 degrees wide viewing angle.
2. The air inlet is equipped with a dustproof filter as a standard. It can be applied to the humid and dusty monitoring environment.

3. The novel air chamber structure makes the detection faster and obtains the relevant structural design patent.
4. Flashlight function, fall alarm function
5. The flashlight function illuminates the darkness for certain workplaces, making downhole operations easier; optional fall alarm function make sure greater safety for underground workers
6. Multi-gas test, display mode can be switched
7. The instrument can simultaneously detect up to 1-4 gases
8. Gas concentration data display, gas concentration real-time curve display mode can be switched easily
9. Flexible and adjustable pump delivery system, multi-layer lter
10. Built-in gas sampling pump, the pump's flow rate is adjustable in ten speeds, which can be customized for different detection environments. The instrument has three layers of ltering devices to efciently lter oil, water, dust and other impurities. Even in the most demanding industrial environment,test results can still be trusted

Comprehensive functions

1. Mini vacuum suction pump with stable flow, long life and low noise
2. Standard storage function, history data can be views on instrument and download to computer
3. 8G large-capacity memory card can download and analysis data
4. Gas display units can be switched freely, the concentration value is automatically converted by the system
5. Chinese and English language
6. With timed shutdown function, intelligent settings
7. Sensor overload automatic protection function
8. With Micro-USB charging interface design, can be charged anytime, anywhere with common data lines and mobile power

9. Optional fall alarm function to ensure the safety of underground workers

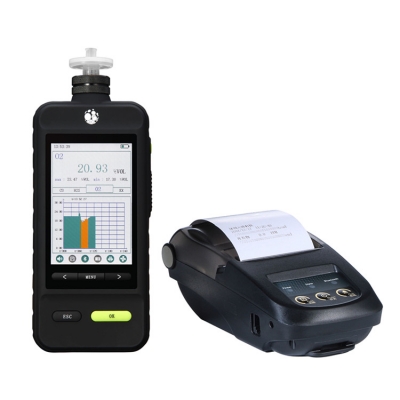

10. Optional external portable Bluetooth printer which can realize mobile printing

11. One-click screen capture function, save test data and curve in picture form

12. Built-in wireless communication module, users can view detection data on the computer web and mobile phone, can realize real-time viewing and monitoring of test data on small programs for security control (optional)

13. Optional 360-degree bending and non-deformable suction probe, detachable, longer than 130mm

14. The suction probe adopts double-layer pipeline with PTFE layer inside, which does not adsorb any gas. Plus spring protection layer

Specication

Detecting gas	N2, Nitrogen
Sensors	Electrochemistry
Measure range	0-100%VOL, 0-99.999%VOL
Resolution	0.01%VOL for 0-100%VOL, 0.001%VOL for 0-99.999%VOL
Display	formula, unit, measurement value, time, battery, alarm status, data recording status, historical data curve, pump working state, alarm status, etc
Sampling	Built-in pump suction sampling, select high-quality micro pump, small noise and vibration. Suction can reach 1L/min.
Alarm	Buzzer, low battery alarm, White flash and alarm status on display
Data storage	Various storage way are optional, large capacity of 8G memory card are optional. Support one key download function, optional PC storage software download and analysis data, storage data format diversication,
Data transmission	USB interface data transmission, with the upper computer software, can download and print data, support the memory card transmission data in one key
Print function(Optional)	Optional with internal portable printer or external bluetooth printer
Print content(Optional)	Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.
Charger	Standard Mini-USB charging port. The commonly used car charger, mobile power supply and common mobile phone charging line can be charged for it
Language	Chinese/English
Wireless network (optional)	Bluetooth, Zigbee
Network frequency	2.4G high frequency.
wireless transmission distance	Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.
