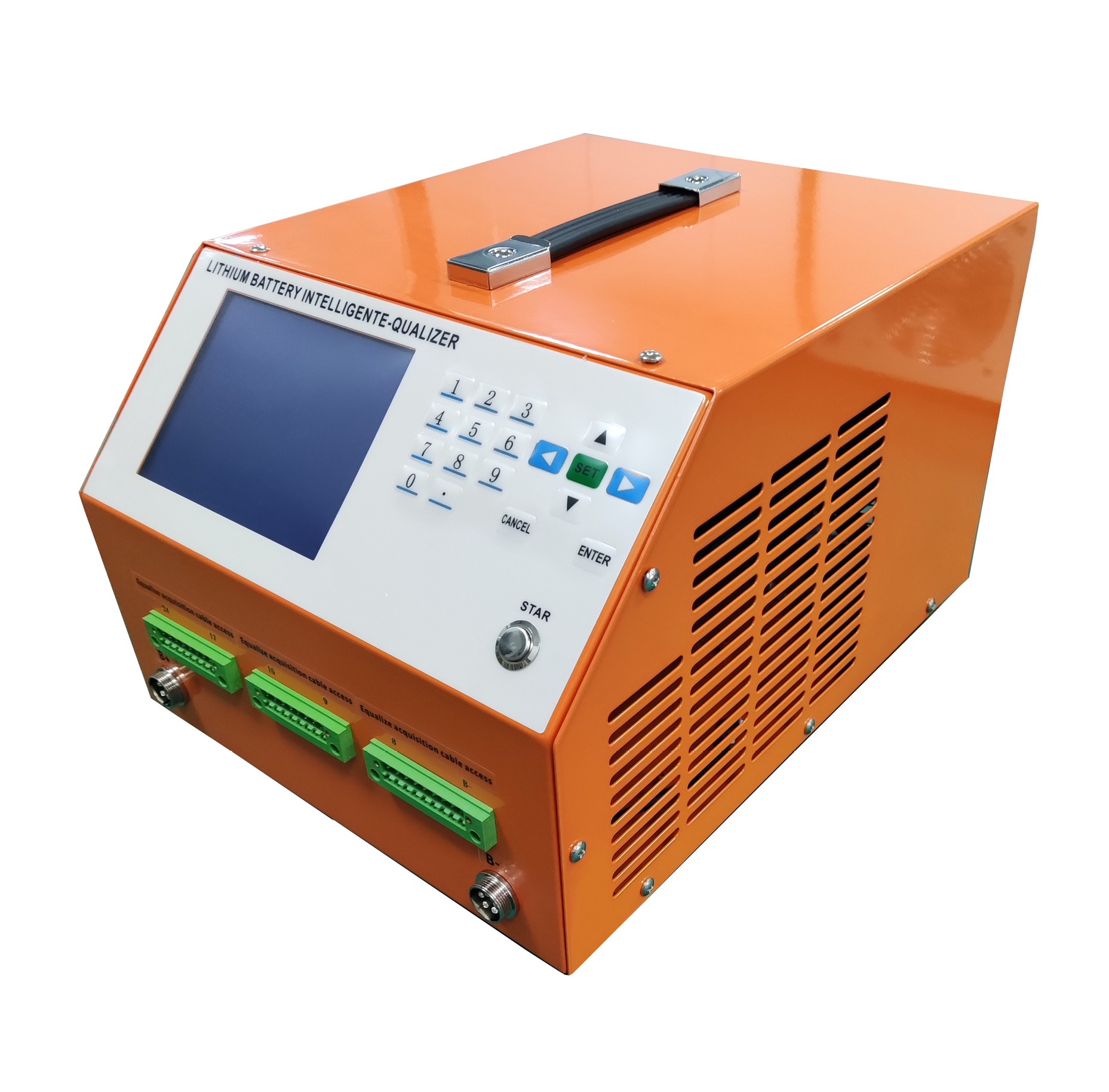

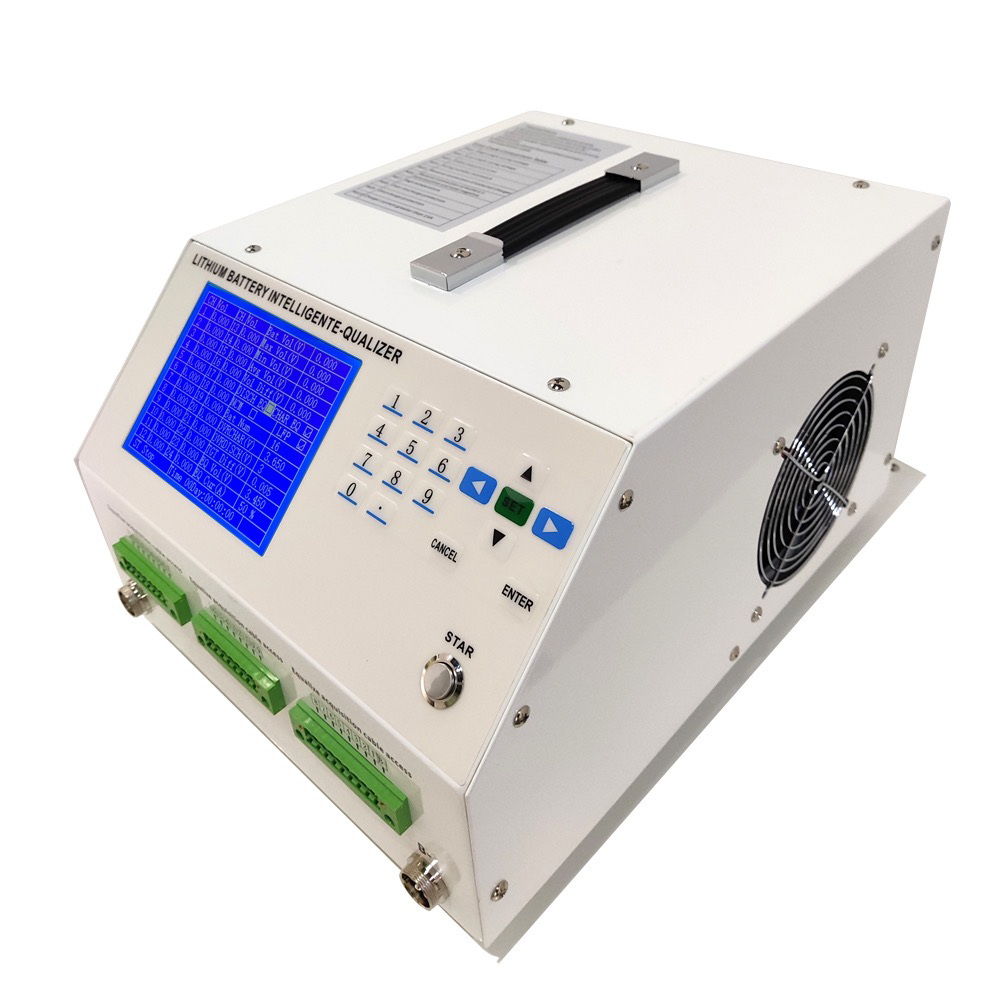

Musktool-JH2420A-20A Lithium Battery Intelligent Equalizer
Click to download: Musktool-JH2420A-20A Lithium Battery Intelligent Equalizer Datasheet
MAIN FEATURES
| 1，The latest technology for equalization maintenance applicable to the discharge equalization and charge equalization of lithium battery pack. |
| 2，Software algorithm with independent intellectual property rights. |
| 3，ARM M3 cores for CPU |
| 4，Selective equalization mode according to the actual condition of the battery pack Single-phase (220VAC) AC power supply |
| 5，Function of multiple protections |
| 6，High precision sampling module |
| 7，Color LCD display |
| 8，Mainly used for equalization maintenance of lithium battery pack |
TECHNICAL SPECIFICATION
Supporting | 2-24 string battery packs |
| Supporting ternary, lithium iron and other types of battery Acquisition range of singlestring voltage: 0-5V (full scale: 5V) | 0-5V (full scale: 5V) |
| Voltage acquisition accuracy: | Voltage acquisition accuracy: +-2mV |
| Equalization current: | Equalization current: 1-20A MAX. |
| The maximum voltage of the external charger: | 105V |
| The maximum current of the external charger: | 15A. AC 220VAC 50HZ power supply. |
| Environmental conditions of use | • No corrosive, explosive and insulation-destroying gases and conductive dusts, etc. • Temperature: -10 to 60 degrees. • Humidity: 0-90% |
PACKING DETAILS
| Accessories | 1pcs Lithium Battery Equalizer 1pcs AC Power Supply Cable 24pcs High current acquisition cable 24pcs Adaptor board acquisition cable 1pcs Adaptor board 1pcs Battery’s total positive connection cable 1pcs Battery’s total negative connection cable |
| Packing Details | Carton Box packing: QTY: 1PCS/CTN G.W.: 13.5KG N.W.: 12.5KG MEAS: 48X40X33.5CM |
SELECTION GUIDE
| Model No. | Supporting | Acquisition range of singlestring voltage: | Equalization current: | The maximum voltage of the external charger: | The maximum current of the external charger: |
| 2-24 string battery packs | 0-5V (full scale: 5V) | 1-10A MAX. | 105V | 15A. AC 220VAC 50HZ power supply. |
| 2-24 string battery packs | 0-5V (full scale: 5V) | 1-10A MAX. | 105V | 15A. AC 220VAC 50HZ power supply. |
