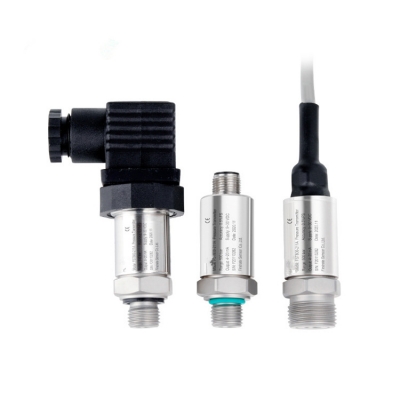

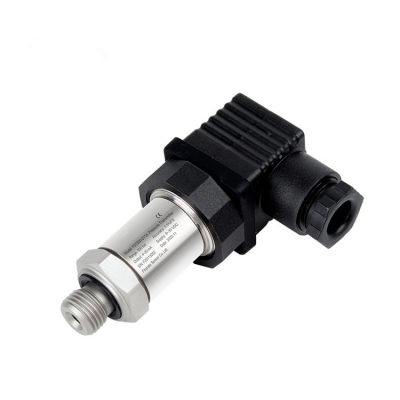

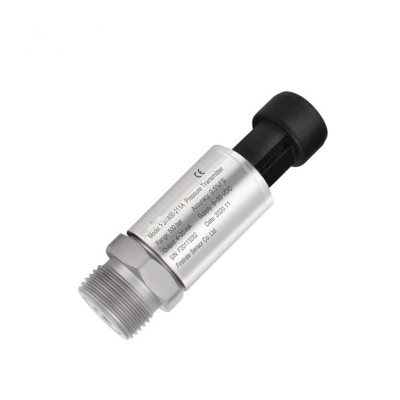

Musktool-FST-800-211A industrial pressure sensor
【Features】
◇ Easy installation and strong versatility. ◇ Efficient lightning protection, strong resistance to radio frequency and electromagnetic interference protection (transmitter). ◇ Anti-surge and polarity reverse protection (transmitter). ◇ Excellent impact resistance, overload resistance, vibration resistance and corrosion resistance. ◇ Advanced temperature digital compensation function, wide working temperature range. |
【Application scope】
| ● Industrial process detection and control. ● Hydraulic and pneumatic control systems. ● Industrial machinery manufacturing. ● Automated detection systems. ● Pump stations and water treatment systems. |
【Technical Parameters】
Product number FST800-211A Pressure type Gauge pressure, absolute pressure, sealed pressure Standard range 0~6…600 bar Signal output 4~20mA, 0.5~4.5VDC, 0~5VDC, 0~10VDC Supply voltage 9~30VDC, 5VDC (0.5~4.5V), 15~30VDC (0~10V) Accuracy ±0.5%FS, ±1%FS Long-term stability ±0.1%FS/year Temperature compensation -20~+85℃ Operating temperature -40~+85℃ Storage temperature -40~+85℃ Overload pressure 300%FS Breaking pressure 500%FS Impact (11mS) 100g Protection level IP65 Material 17-4PH Electrical connections Direct lead, M12 connector, Packard connector,
Hirschmann (Mini), Hirschmann (DIN43650) Pressure port M20X1.5 G1/4 NPT1/4 (others need to be customized)
【Product Details】
