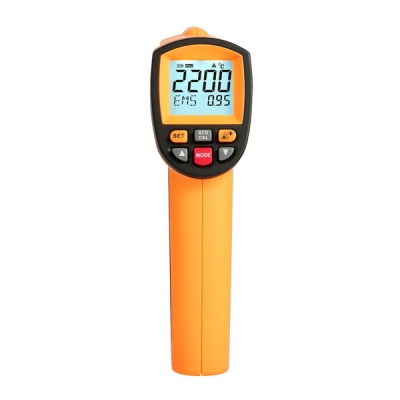

Musktool-Electrical Instruments Digital Non-contact Thermodetector Infrared Thermometer GM2200
This unit consists of optics system, photoelectric sensor, signal amplifier, signal process circuit and LCD. The optics system collects the infrared energy emitted by object and focus onto the sensor. Then the sensor translates the energy into electricity signal which will be turned out to be readings shown on the LCD by the signal amplifier and signal process circuit. Equipped with RS232 data export function, this product is surely to be a great help to your work. |
Features
Infrared thermometer possesses the following features: 1.Max / Min / Difference / Average display 2.℃ / ℉ temperature unit conversion 3.Data retention 4.Positioning laser 5.LCD backlight 6.Measurement data storage / view / clear 7.High / low temperature alarm settings 8.Automatic shut-down 9.RS232 interface |
Specifications
| Temperature range | 200 ~ 2200℃ (392 ~ 3992℉) |
| Accuracy | 200℃(392℉)~ 450℃(842℉): ±2℃ or ±2% 450℃(842℉)~ 1100℃(2012℉): ±3℃or ±3% 1100℃(2012℉)~ 2200℃(3992℉): ±4℃or ±3% whichever is bigger |
| Repeatability | 1% of reading or 1℃ |
| Time response | 500 mSec, 95% response |
| Spectral response | 900~1700 nm |
| Emissivity | 0.10-1.00adjustable (pre-set 0.95) |
| Ambient operation range | 0 ~40℃ (32 ~ 104℉) |
| Relative humidity | 10-80% RH noncondensing |
| Storage | -20 ~ 60℃ (-4~140℉)≤85%, without battery |
| Weight / Size | 270G(without battery） ; 141 x 60 x 220mm |
| Power | 9V Alkaline battery or 9V 500mA DC IN |
| Battery life(alkaline) | Laser Models:10 hrs |
| Distance to spotsize | 80:1 |
