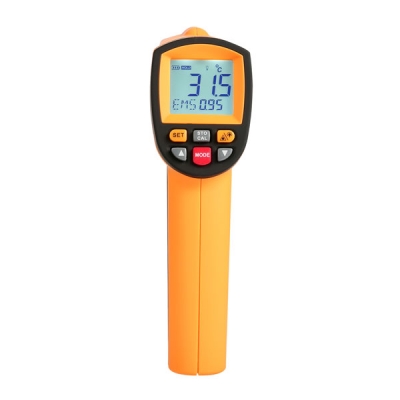

Musktool-IR Digital Industrial Infrared Thermometer GM1651
This machine consists of optical system, photoelectric sensor, signal amplifier, signal processing Circuit and LCD display components. Optical system Infrared energy to the photoelectric sensor, the photoelectric sensor converts the energy into the corresponding Electrical signal, which is converted into reading through signal amplifier and signal processing circuit It is displayed onthe LCD. The machine also has a USB data output function, so that your measurement The volume is more handy! |
Features
Infrared thermometer possesses the following features: 1.Max / Min / Difference / Average display 2.℃ / ℉ temperature unit conversion 3.Data retention 4.Positioning laser 5.LCD backlight 6.Measurement data storage 7.High / low temperature alarm settings 8.Automatic shut-down 9.USB interface |
Specifications
| Temperature range | -30~1650℃ (-22~3002℉) |
| Accuracy | 0~1650℃(32~3002℉) :±1.5℃(±2.7℉)or±1.5% -30~0℃(-22~32℉):±3℃ (±5℉) Whichever is greater |
| Resolution | 0.1℃ or 0.1℉ |
| Repeatability | 1% of reading or 1℃ |
| Response time | 0.5~0.8 Sec, 95% response |
| Spectral response | 8-14 um |
| Emissivity | 0.10~1.00 Adjustable (0.95 Preset) |
| Distance to Spot size | 50:1 |
| Operating Temperature | 0 ~40℃ (32 ~ 104℉) |
| Operating Humidity | 10~95%RH non-condensing， up to 30℃(86℉) |
| Storage Temperature | -20 ~ 60℃ (-4~140℉) |
| Power | 9V Alkaline or NiCd battery |
| Typical battery life (Alkaline) | Non-laser mode: 22 hrs; Laser Models:12 hrs |
| Weight | 270g |
| Dimension | 141*60*200mm |
