Musktool-Indoor Air Quality Monitor with CH2O Humidity Temperature & TVOC Gas Sensor Formaldehyde & CO2 Sensor Gas Analyzers
Products:
temperature and humidity sensor, gas sensor, water quality sensor, liquid level sensor, dust sensor, illuminance sensor, ultrasonic sensor, laser sensor, infrared sensor, current sensor, relay module, development board, communication module, electronic module, power module , other accessories, etc. |
Product Description
Module function

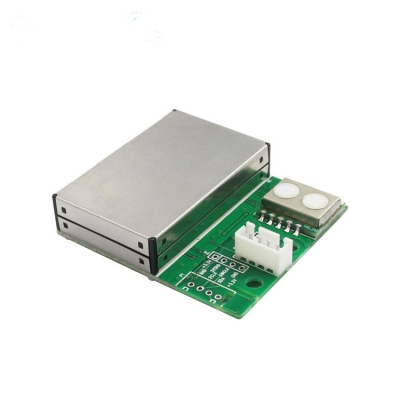

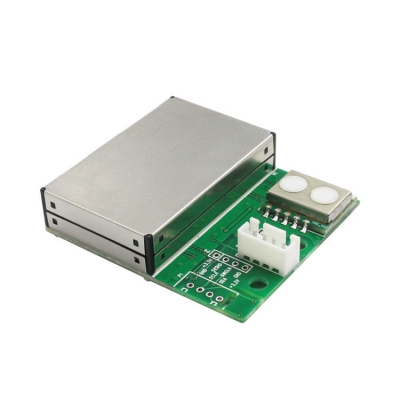

LGAQS-KZ01 sensor module is an integrated air quality detection module integrated with TVOC, CO2, dust, formaldehyde and temperature and humidity. It can detect the environment in real time and output data through a certain protocol format. It is easy to use and has good stability. |
| Working voltage | DC5V / DC12-24V (ripple must not exceed 200mV) | ||
| Working temperature | 0~50℃ | ||
| Working humidity | 15%RH-90%RH (no condensation) | ||
| Output mode | ModBus-RTU 485 / TTL serial port output | ||
| Preheating time | ≤10 minutes | ||
| Service life | 5 years (in the air) | ||
| application area | Portable instrument, vehicle system, air quality monitoring equipment, air purifier, new air ventilation system, air conditioning, smart home, Smart Hotel equipment and other places. | ||
Technical indicators:
| Resolution | Measuring range | Accuracy | |
| TVOC | 1 ug/m³ | 0-1200 ug/m³ | ±90 ug/m3 |
| PM2.5 | 0.3 ug/m³ | 0-1000 ug/m³ | ±10 % |
| PM10 | 0.3 ug/m³ | 0-1000 ug/m³ | ±10 % |
| Temperature | 0.01 ℃ | -20~80 ℃ | ±0.5 ℃ |
| Humidity | 0.04 %RH | 5-100 %RH | ±5 %RH |
| e CO2 | 1 ppm | 400-5000 ppm | ±100 ppm |
| e CH2O | 1 ug/m³ | 0-500 ug/m³ | ±40 ug/m3 |
