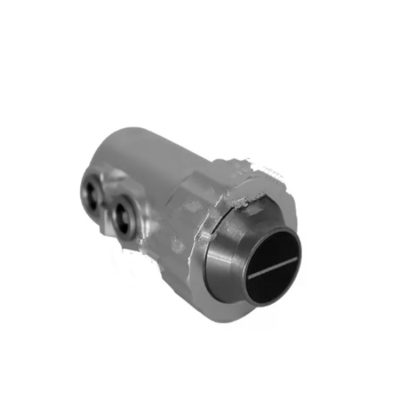

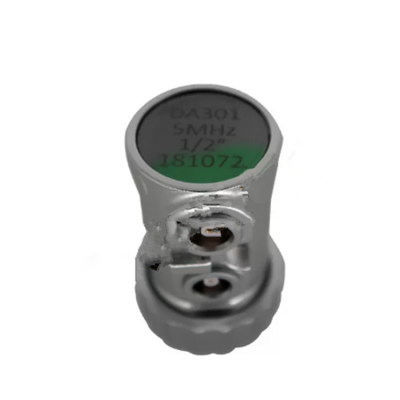

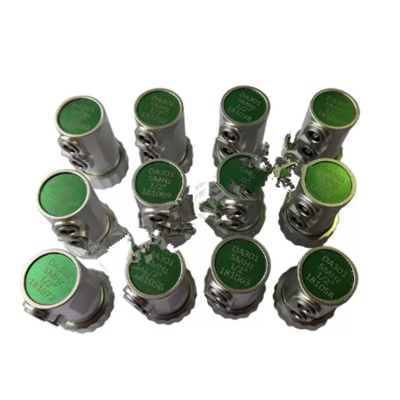

Musktool-Made High Power Ultrasound 5 Mhz Transducer Equv Ge DA301 Probe 5mhz Straight Beam Probe
Features:
Probe Model: DA301 S/N.:Probe Parameters Probe Frequency:5Mhz Crystal Dimension:10mm Center Frequency:4.93MHZ Diameter contact surface (mm):12.5mm Measuring range (mm):1.2 – 200mm Connection:2x Lemo-00 Connection position;Side Amount of christals:2 Sensitivity:27dB Bandwidth(-6dB):38% Temp.:-5—50C Probe Type:Dual Connector Type: Lemo00 Test Device PR/AD: UsUltratek Type: PCI3100 Damping:60 Ohm Voltage:300V Gain:36 dB |
| Xtester Instrument Co., Ltd is a leading NDT manufacturers and suppliers in GuangZhou China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,Limin has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety. |
Parameter:
| model | EQUV. GE MODEL DA301 |
| Frequency | 5Mhz |
| Center Frequency | 4.93MHZ |
| Crystal Dimension | 10mm |
| Sensitivity | 27dB |
| Type | Straight beam probe |
| Diameter contact surface | 12.5mm |
| Measuring range | 1.2 – 200mm |
| Connection type | 2x Lemo-00 |
| Connection position | side |
| Amount of christals | 2 |
| Bandwidth(-6dB) | 38% |
| Temp | -5—50C |
| Probe Type | Dual |
