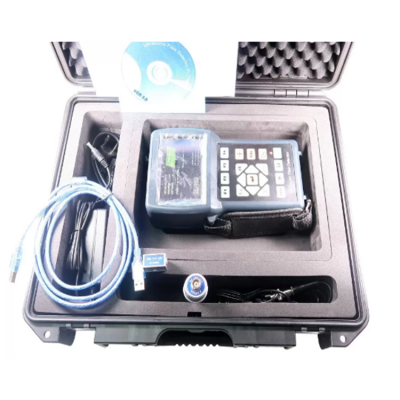

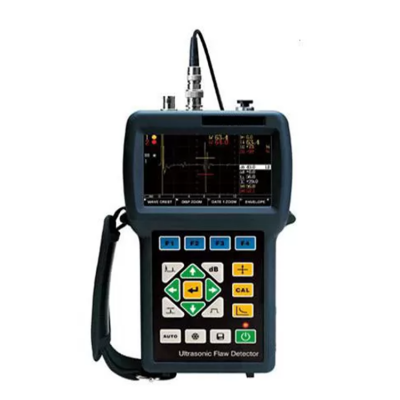

Musktool-Handy Portable Ultrasonic Flaw Detector Echo Crest Tracking Comapp for Pc Review Report Print
Features:
Circuitry of advanced design and sampling frequency up to 640MHz ensure instant and accurate display and analysis of flaw signals even when they’re weak. ·State-of-the-art square wave drive technique ·Weighing only 0.9kg, convenient for operation and taking it along ·TG, full WVGA TFT display ·8+ hour battery life promises consecutive working, inbuilt smart-type battery charger, auto-switching between the status of charging and that of powering. ·External USB port for software upgrading, data transferring and printing, graftable to mouse, keyboard and USB disc. ·EN12668:2000 compatible |
Specification
Attenuator Error | Per 12dB ±1dB |
Equivalent Input Noise | <80×10-9V/√HZ^ |
Pulse Type | -ve square wave, Tv: 25~250V ; tunable with 25V per step |
Working Modes | T\R ; T&R |
Damping | 400\80 Ohm |
Working Frequency | W\N Band, W: 0.5~20MHz; N: 1.5~3MHz |
Gain | 0.0~110.0dB; 0.1\1.0\2.0\6.0 dB per step; smart speed-up at 0.1dB |
Material Velocity | 1000~15000m/s tunable; preset 30 frequently-used Vs optional |
Display Reachable | 0.0~10000mm LW at steel velocity tunable with min 0.1mm per step |
Rectification | Positive, Negative, Full, RF (1002plus) |
Gate & Alarm | Dual gates, hardware driving real-time alarming; Alarming condition: excess\loss\ DAC; Alarm mode: sound ; |
Spotting: peak | |
Display | TG, TFT 5.6 inch WVGA color display, resolution 800×480 |
Pulse Shift Range | -7.5~3000μs |
Probe Delay Available | 0~999.9μs |
PRF | 25~800Hz, auto adaptation |
Vertical Linearity Error | ≤3% |
Horizontal Linearity Error | ≤0.2% |
Sensitivity Surplus | ≥60dB (200Φ2 FBH) |
Discernibility | ≥36dB (mated with 5MHzΦ14 transducer) |
Dynamic Range | ≥32dB |
Rejection | (0~90) %, without any dent to linearity or gain |
NL | <10% |
Ports | BNC probe connector |
USB HOST | |
Power Supply | Large-capacity Li battery without memory effect; battery life: 8+ hrs; |
In-built battery charger (independent charger optional); AC: 220V | |
Dust\Splash\Water Proof | IP54 |
UT Standards | Compatible with EN12668-1 |
Meets JB/T 10061-1999 | |
Ambient Temperature | -30~50℃ |
Relative Humidity | 20%~95% |
Weight | Around 0.9kg (with battery & in-built charger) |
Dimension | Upper Part: 215mm×126mm×53mm |
Lower Part: 215mm×104mm×42mm |
