Musktool-SH-ADS-ABC Groveed Type Photoelectronic Switch

Musktool-SH-ADS-ABC Groveed Type Photoelectronic Switch

2023-07-07 14:08:30

Groveed Type Photoelectronic Switch

  • Main Feature :
  • Serial No. :
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-SH-ADS-ABC Groveed Type Photoelectronic Switch

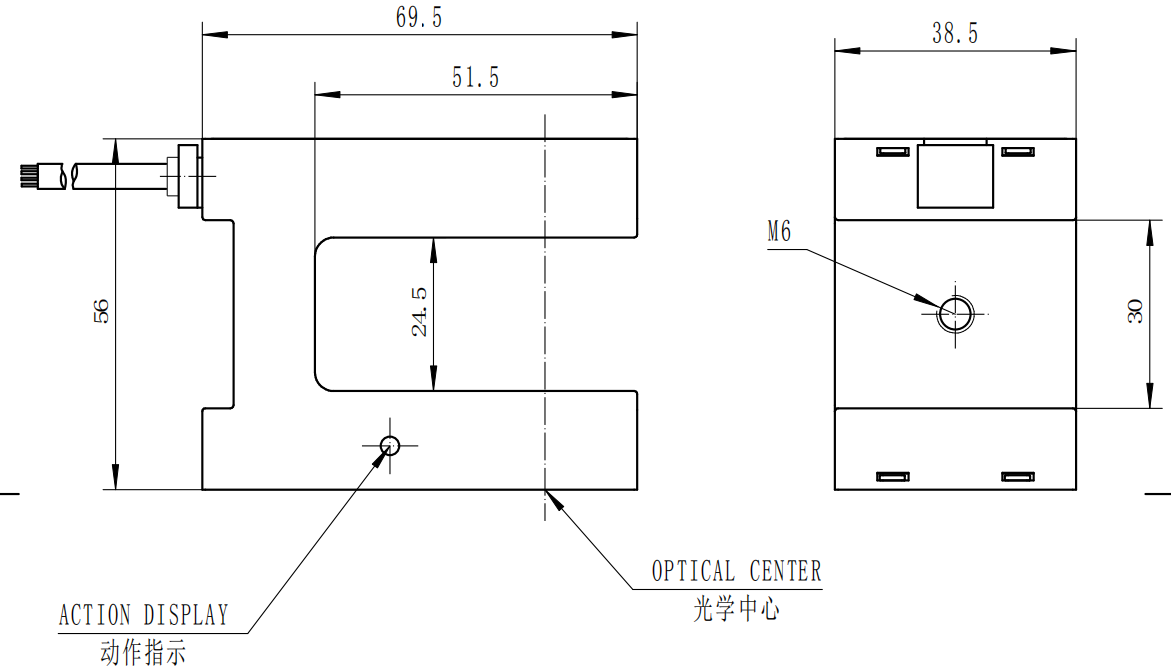

图片关键词

TECHNICAL SPECIFICATION

Model

SLUR-ADSC-2SCOC-B

Supply Voltage

DC11V~30V±5%

Current Consumption

<40mA

Detection Method

Projective

Detected Distance

23mm

 Detected Object

Opaque object more than 5mm

Detection Channel

Single channel

Light Source

Infrared Emitting Diode (940nm)

Response Frequency

>1KHz(<1ms)

Protective Circuit

Power reverse connection protection;Overcurrent and overvoltage protect circuit outout

Control Output

Load supply voltage Max:30VDC; Load current Max:120mA (the remaining voltage Max:1VDC);

Indicator Lamp

Power Indicator: Green LED  Action Indicator: Red LED; (Dark-Light)

Voltage Withstand

500VAC 50/60Hz 1min

Ambient Lighting

Incandescent lamp:<3000Lux; Sunlight:<10000Lux

Ambient Temperature

Work: -20℃~65℃; Storage: -35℃~70℃

Ambient Humidity

Work: 35~80%RH; Storage: 35~80%RH

Insulation Resistance

Min:20MΩ(500VDC)

Vibration  Resistance

10~55Hz Amplitude fluctuation  1.5m    X、Y、Z each direction 2h

Impact  Resistance

500m/s2 X、Y、Z each direction 2h

IP Code

IP54

Material

ABS

Weight

About 60g

Cable Length

Default is 2M, which can be customized according to client's requirements

Certification

CE、UCMP、ISO:9001
