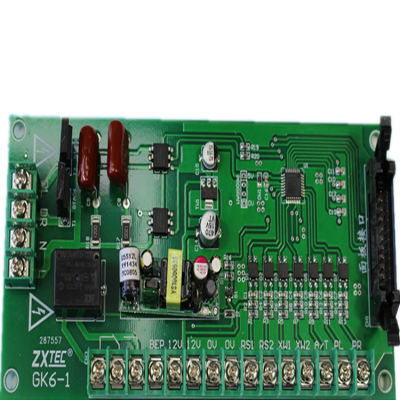

Musktool-GK-6 Rectifying control panel

Introduction

K6 deviation control board is the main control computer board in GK-61 series photoelectric deviation correction controller, which belongs to bulk products. Because of a kind of deviation correction control board needed by the industry, it can be flexibly matched with other bulk products to meet the needs of customers for the configuration of special machines. The performance of GK6 deviation correction control board is the same as that of GK-61 series photoelectric deviation correction controller.

Characteristic

Built-in intelligent single-chip microcomputer control

The response speed of rectifying deviation can be adjusted

provide one-eye or double-eye deviation correction

Custom with line and heel

Provide external control interface

Technology features

response time	≤50ms(adjustable)
Deviation correction accuracy	±0.2mm
output power	50-500W
detection mode	Check the edge, follow the line.
control method	Single electric eye
External switch	Automatic/ manual switch, left/ right turn switch
Annex (selection)	Photoelectric eye, synchronous motor, ball wire rod
working voltage	AC220V±15% 50Hz
