Musktool-Fixed Gas Detector Can Be Used in Gas Storage Rooms Continuous Monitoring Detect Gas Residue and Leak IECEx ATEX
Product Description
SG100 Fixed Gas Detector SG100 series is a cost-effectivegas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases.It isIECEx, ATEXcertified,with intrinsically safe explosion grade.Havinga2 wire or 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with mostcontrol systems. With optional wirelessdata transmission,customer is able to review, download the data remotely.Support both magnetic and remote control,flexible for setting. |

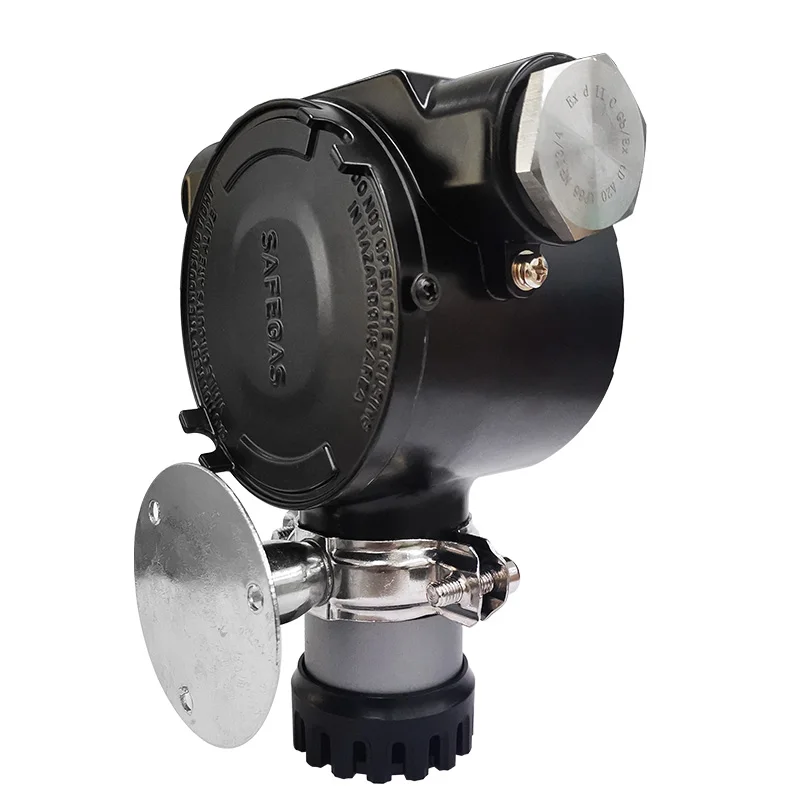

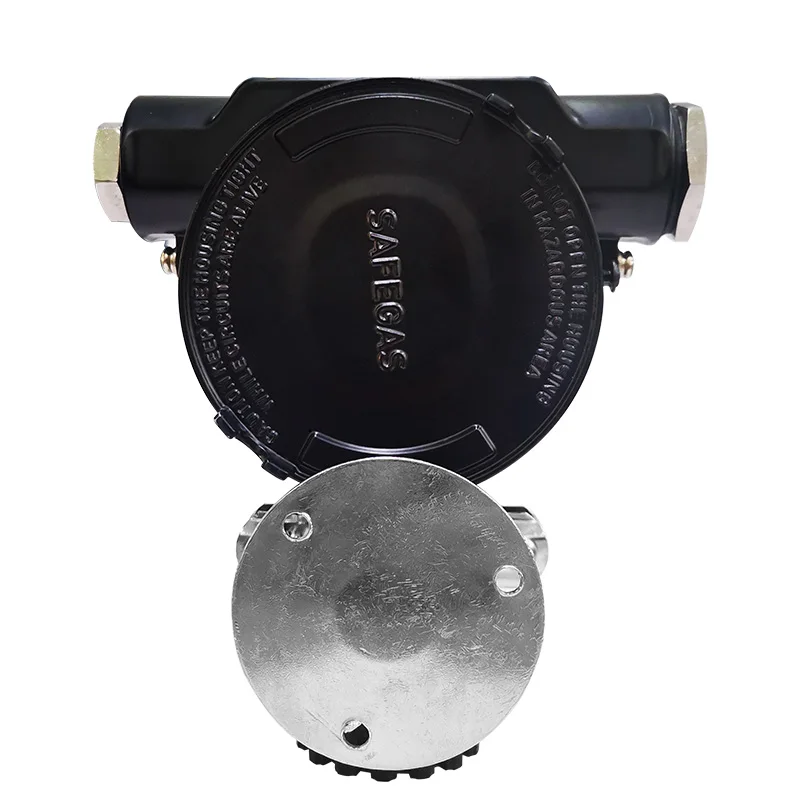

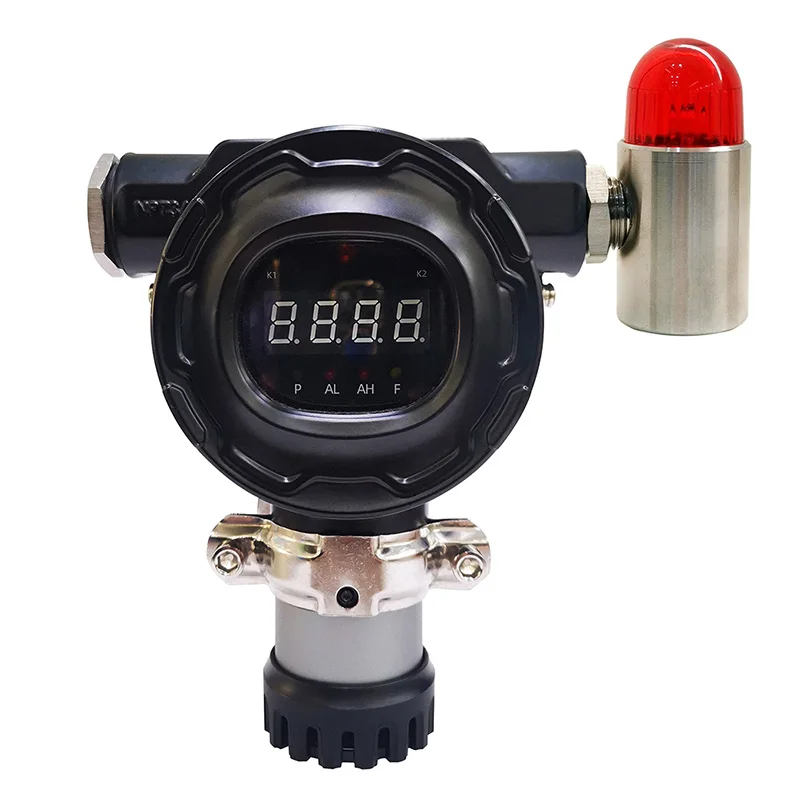

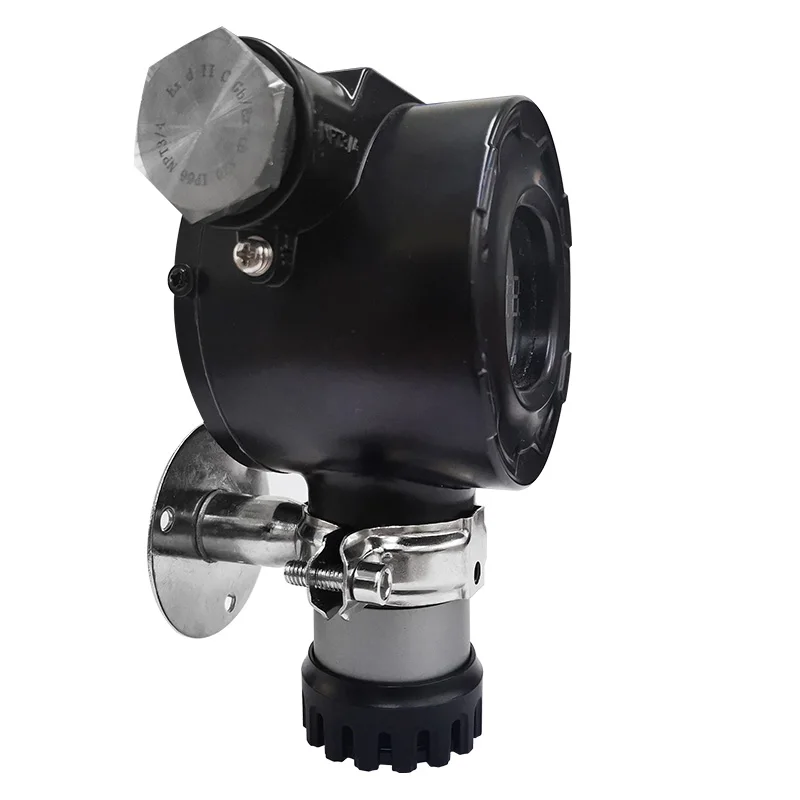

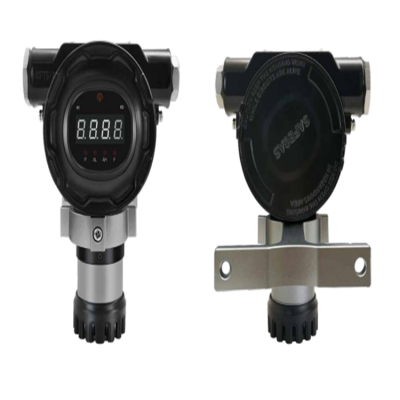

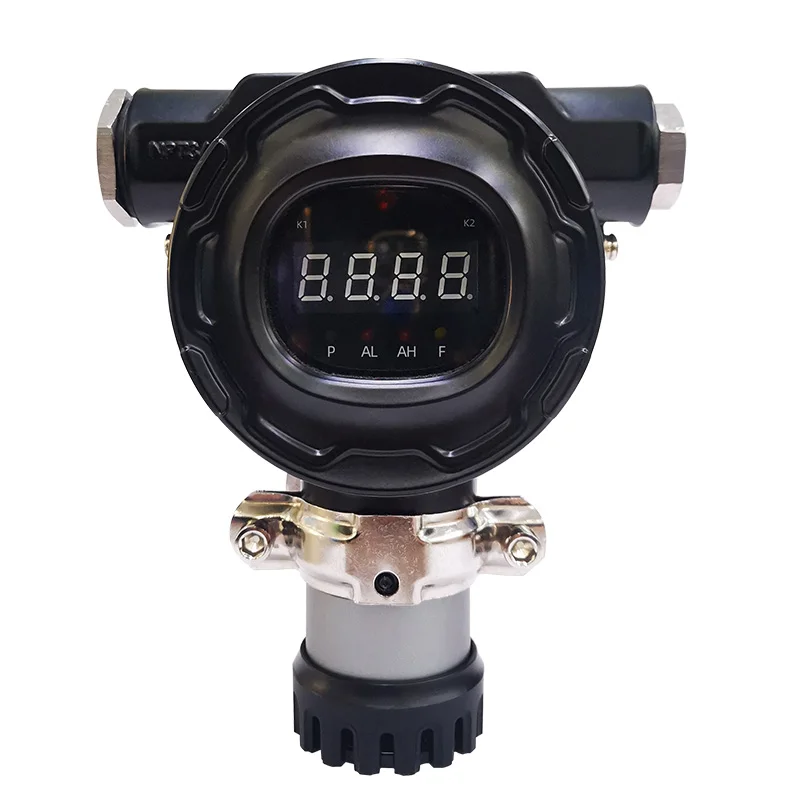

Product Picture
Product Advantage
§ IP66/IP68 water & dust resistant § Intelligentplug and play sensor module.the module supportcalibration by Safegas PC software, making replacement and maintenance easier. § With standard splash guard to protect sensor for outdoor installation or environment with water splash. § Smalland light,weight is only 1 kg,andthe detector comes with standard mounting bracket,easy for installation. § Standard 4-20 mA analog signal output andRS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems. § The detector comes with 3relays, including low/high/fault alarm relay(Optional) § Support both magnetic andremote control, flexible for setting.
|
Specifications:
Detected Gas | O2 |
Measure Range | 0-30%VOL |
Install Method | Wall-mounted, piping type, flow-type |
Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
Precision | ≤±1%F.S. (to be specialized) |
Zero shift | ≤±1%(F.S./year) |
Display | 4 digits Nixie tube display. |
Connection mode | G3/4 external thread explosion-proof flexible pipe |
Thread Size | Standard M20*1.5, 3/4NPT |
Temperature | –20℃~50℃ (electrochemistry principle), –40℃~70℃ (catalytic combustion principle) |
Humidity | 10-95%RH (non-condensing) |
Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
Degree of protection | IP66/IP67 |
Material | Sensor housing: aluminum alloy or 316 stainless steel |
Power | 12-24V DC |
Dimensions | 158×129×70mm |
Weight | ≤1kg |
Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
Warranty | 12 months |
