Musktool-Film Coating Thickness Gauge GT230

  • Main Feature :
  • Serial No. : Lisa0498
Contact US For Quotation  Email:464560351@qq.com  Whatsapp&Wechat:+8618620373879

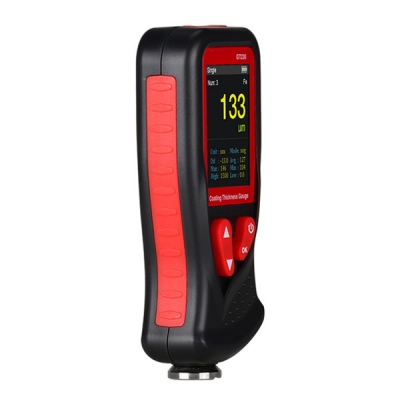

Musktool-Film Coating Thickness Gauge GT230

This product is a color-screen portable coating thickness gauge with highdefinition display, which can quickly, non-destructively and accurately me-asure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal sub-strates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas.

Features

This Coating Thickness Gauge thermometer possesses the following features:

1. Menu operation and color-screen HD display.

2. Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate.

3. Two measurement methods: single measurement, continuous measurement.

4. Basic calibration and Zero-point calibration available.

5. Metric/imperial unit and storage function.

6. Screen rotation, charge protection, multi-interface displays, screen brightness selection.

7. Automatic shutdown.

Specifications

Measurement range
0 ~ 1300um/51mil
Resolution
( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil
Measurement error
≤150μm  ±5μm
>150μm ±(3%H+1μm)
Minimum diameter of magnetic metal substrate
12mm
Minimum thickness of magnetic metal substrate
0.5mm
Minimum radius of curvature for magnetic convex substrate
2mm
Minimum radius of curvature for magnetic concave substrate
11mm
Minimum diameter of non-magnetic metal substrate
50mm
Minimum diameter of non-magnetic metal substrate
50mm
Minimum thickness of non-magnetic metal substrate
0.5mm
Working voltage
DC 3.7V (Lithium battery capacity 1000mAh)
Size
52.9*26*117mm
Weight
102.4g(including battery)
