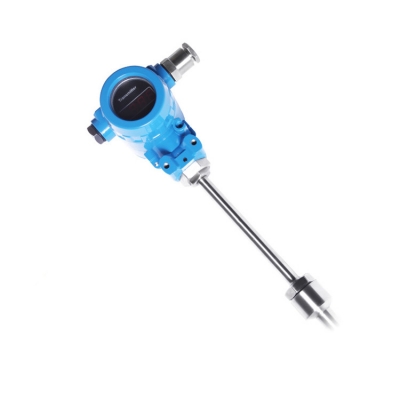

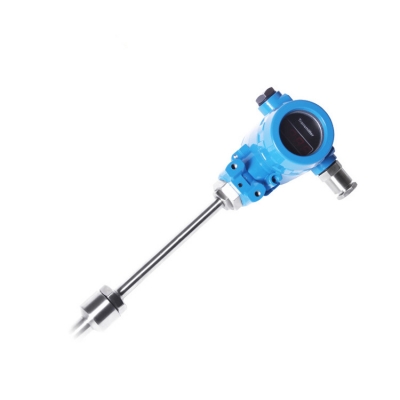

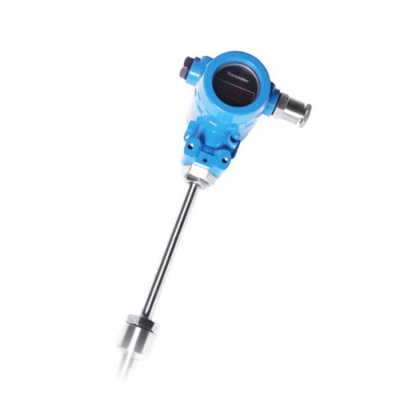

Musktool-FST600-207 Intrinsically Safe Temperature Transmitter
【Product Features】
| ● Low temperature medium measurement ● 4~20mA current output ● Suitable for gas and liquid measurement, simple installation ● Built-in high-performance intrinsically safe explosion-proof circuit, ExiallCT6 Ga ● Nonlinear correction circuit design |
【Application Range】
| ● Industrial process detection and control ● Hydraulic and pneumatic control systems in explosion-proof occasions ● Chemical products and chemical industry |
Technical indicators
Output signal 4～20mA Signal line specifications 2Wire Intrinsic safety parameters Ui= 28VDC, Ii=93mA, Pi= 0.65W, Ci=0.03μF, Li=0 Supply voltage 24 V DC Overall accuracy ±0.5%FS Probe withstand voltage Typical: 40Bar Maximum: 400Bar Long-term stability (1 year) 0.1%FS/year Ambient temperature -20~+60°C Storage temperature -40~125°C Mechanical vibration Peak acceleration 100m/s2 Medium compatibility Various media compatible with 304 stainless steel Protection level IP65 Explosion-proof level Ex ia IIC T6 Ga
