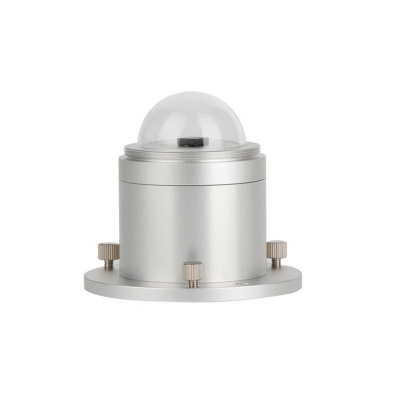

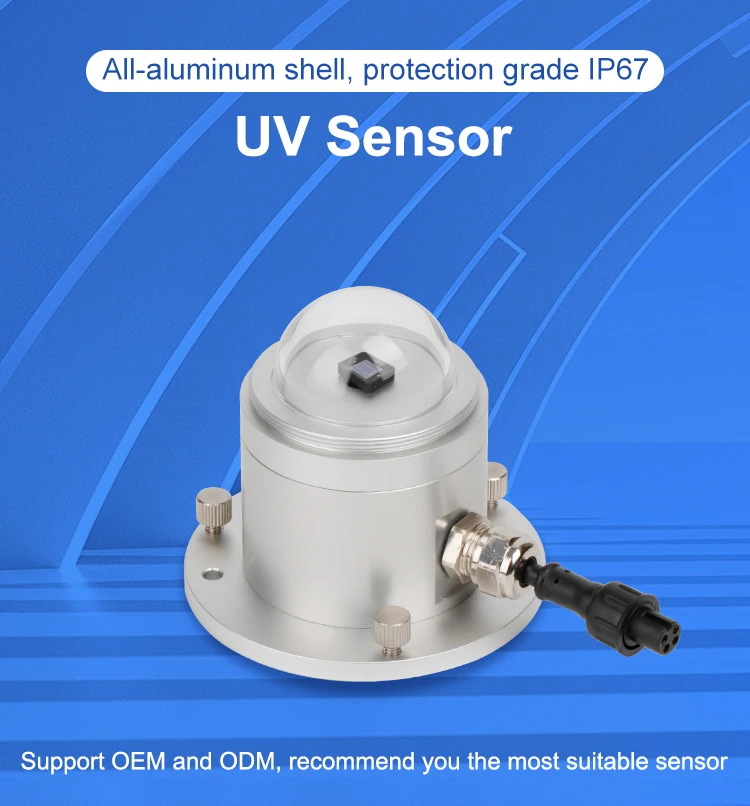

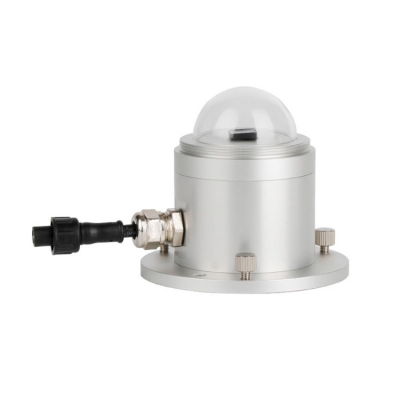

Musktool-FST100-UV-A 4-20mA 0-5V RS485 Output Ultraviolet Radiation UV Sensor

Main Feature : Musktool-FST100-UV-A 4-20mA 0-5V RS485 Output Ultraviolet Radiation UV Sensor
Serial No. : Owen0177

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-FST100-UV-A 4-20mA 0-5V RS485 Output Ultraviolet Radiation UV Sensor

Features

Shell	Protection performance IP67
Powered by	10-30V DC
UV intensity range	0-15mW•cm-2
Resolution	0.01mW•cm-2
Precision	±10%FS
Wavelength range	240nm-370nm
Output signal	RS485,4-20mA,0-5V
Linearity	±2%
Annual stability	±3%
Operating temperature	-25°C-60°C
Response time	≤1s
Standard	Conforms to the secondary standard of JJG 879-2015 Ultraviolet Illuminance Meter Verification Regulations

Lable: Musktool-FST100-UV-A 4-20mA 0-5V RS485 Output Ultraviolet Radiation UV Sensor
