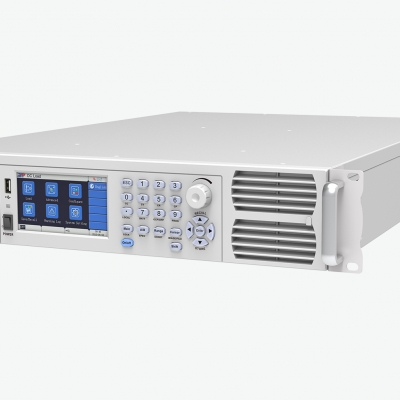

Xtester-EL Series High-density Programmable DC Electronic Load

  • Main Feature :
  • Serial No. : Zoe048
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Xtester-EL Series High-density Programmable DC Electronic Load

This series High-density Programmable DC Electronic Load provides four voltage ranges 40V/200V/600V/1200V. With industry-leading ultra-high power density technology, 4U height can reach 8.1kw.Supports CV, CC, CR and CP these 4 basic operating modes, as well as CV+CC, CV+CR, CR+CC these 3 complex operating modes. Full protection includings OCP, OPP, OTP, over voltage and reverse alarm. Support external control and monitor mode, the 0 to 10V input or output signal represent 0 to full range voltage or current. Provide OCP test, OPP test and Short circuit simulation to effectively solve the application demands for power and automated testing. Built-in RS232, RS485 and USB communication interfaces, LAN&GPIB communication card is optional. Two or more loads can be connected in master-slave parallel mode to provide more power or current capacity. This series DC load can be applied to battery discharge, DC charging station and power electronics and other electronics products.

Product Features

Flippable front panel and color touch screen allow convenient access and operation

Dynamic frequency sweep function for determining worst case voltage peaks*

Short circuit test mode

Supports external analog control function

V-monitor/I-monitor

Adjustable current slew rate, adjustable CV loop speed

Ultra high precision voltage & current measurement

Full protection: OCP, OPP, OTP, over voltage and reverse alarm

OCP/OPP testing function

Maximum power point tracking*

50kHz high-speed CC/CR dynamic mode

Up to 20 units master/slave parallel control

500kHz high-speed voltage and current sampling rate

Timing & discharging measurement for batteries

Front panel USB interface supports data import and export

Smart fan control with lower noise and better for environment

SCPI language and standard rack size make it ideal for ATE System integration

Multi versions to meet the cost performance and different applications

Provides four kinds of basic working mode such as CV/CC/CR/CP, and CV+CC/CV+CR/CR+CC complex operating modes

Auto mode function provides an easy way to do complicated tes

* Only professional Electronic Load units support these function

Function & Advantage

Small Size, High Power Density

This series adopts high power density design. 8.1kW is with only 4U height.

图片关键词




Flippable Front Panel and Color Touch Screen

This series High Power DC Load is equipped with flippable front panel for 4U, 7U, 10U and 13U height models. Together with a large color touch screen provides simple and fast operation for customer. Real-time update of display input data, status and graphical display makes it more intuitive.

图片关键词

Multiple Operating Mode

This series High Power DC Load provides four kinds of basic operating mode including CV (constant voltage), CC (constant current), CR (constant resistance), CP (constant power), to satisfy a wide range of test requirements.

图片关键词

Adjustable CV Loop Speed

This series electronic load supports CV loop response speed setting to FAST, NORMAL or SLOW to satisfy different test requirements. This function may avoid the inaccurate measurement or testing fail caused by the response speed mismatch between the load and the power supply, which is possible to improve test efficiency and reduce costs on the equipments, time and expenses.

图片关键词

Dynamic Load

This series electronic load can be switched quickly between different values in the same operating mode, including CC dynamic mode, CV dynamic mode, CR dynamic mode and CP dynamic mode, CC/CR high speed dynamic mode up to 50kHz. This function is suitable for transient test of power supply, test of battery protection characteristic and battery pulse charging etc. Dynamic mode test has continuous mode, pulse mode and toggle mode.

图片关键词


Sine Wave Dynamic Load

This series electronic load supports sine wave loading function which allows to load sine wave, can be used for impedance analysis test of fuel cells.

图片关键词

Dynamic Frequency Sweep Function

This series electronic load provides a unique constant current dynamic sweep to use frequency conversion to find out the UUT voltage of worst case. This CC dynamic sweep allows the user to edit two load levels, start frequency, end frequency, step frequency, dwell etc. The sampling rate is up to 500kHz, which make it can simulate different loading conditions for most test requirements.

图片关键词

Maximum power point tracking (MPPT)

It can be applied to track the maximum power point of solar panels. Through the maximum power point tracking method, the maximum power point of the solar panel can be dynamically searched all the time, which can maximize the effectiveness of solar panels

图片关键词

Battery Discharge Test

This series electronic load has battery discharge function, and can perform discharge test under CC, CR or CP mode. The DC load can set end volatge or time to stop loading correctly and make sure the battery is not damaged due to over discharge. The user can set stop conditions, whenever met any condition, the load will stop loading and counting automatically. During the test, users can observe battery's voltage, discharging time and already-discharged-capacity.

图片关键词

Auto Mode

This mode allows automatically switches among CV, CR, CC and CP modes. It is suitable for lithium ion battery charger testing to get a complete V-I charging curve. This flexible auto mode also enormously improve test efficiency.

图片关键词

OCP/OPP Tests

This series electronic load provides OCP and OPP modes are mainly applied in over-current and over-power points tests. After the testing the load can automatically judge the test result according to the set specifications. Take OPP testing as example, the OPP provides ramped up power for the load to test the UUT voltage whether has reached trigger voltage level and to judge if the protection is acting normally or not.

图片关键词

List Mode

The list function allows user to create waveform files to automatically simulate various complicated loading conditions. The list mode has 10 files, by editing operating mode (including CC, CV, CR ,CP, Short and ON/OFF), repeat times, total steps, setting value of each step and step time etc. This function can be applied to the testing of output characteristic and stability for power supply.

图片关键词

Master/Slave Control

This series electronic load provides the user with Master/slave mode, supports parallel connection under different power and same voltage and dynamically synchronized. In Master/slave mode, the user only need to control the master one, the load current will be automatically calculated and downloaded to the slave loads. The Master/slave mode greatly simplifies the operation when increased power is needed.

图片关键词

External Control and Current/Voltage Monitoring

This series electronic load has analog control interface to control the input voltage and current. The external signal 0 to 10V controls the sinking condition from 0 to full scale. Using the external control mode can simulate arbitrary waveform which is ideal for industrial control requirement. The 0 to 10V analog output signal of V-MON/I-MON terminals represent input to which the terminals belong from 0 to full range. An external voltmeter or oscilloscope can be connected to display input voltage/current change.

Programmable DC Electronic Load Models Table

Input Voltage

2U

3U

4U

600W

1200W

1800W

2400W

3000W

3400W

4400W

5600W

6600W

8100W

40VDC

*

*

*

*

*

620A

800A

1020A

1200A

*

200VDC

60A

130A

190A

260A

320A

370A

480A

610A

720A

720A

600VDC

40A

90A

130A

180A

220A

250A

320A

410A

480A

600A

1200VDC

*

45A

*

90A

*

125A

160A

205A

240A

*

Intput Voltage

7U

10U


8800W

10300W

11000W

12500W

13200W

14700W

15400W

16900W

17600W


200VDC

960A

960A

1200A

1200A

1440A

1440A

1680A

1680A

1920A


600VDC

640A

760A

800A

920A

960A

1080A

1120A

1240A

1280A


1200VDC

320A

*

400A

*

480A

*

560A

*

640A


Input Voltage

10U

13U


19100W

19800W

21300W

22000W

23500W

24200W

25700W

26400W

27900W


200VDC

1920A

2160A

2160A

2400A

2400A

2640A

2640A

2880A

2880A


600VDC

1400A

1440A

1560A

1600A

1720A

1760A

1880A

1920A

2040A


1200VDC

*

720A

*

800A

*

880A

*

960A

*


*Custom master slave system could extend to 558KW(20 units 27.9KW E-load parallel connect).

DC Electronic Load System Models Table

Input Voltage

30U Cabinet

36U Cabinet

42U Cabinet

39.6kW

44.1kW

52.8kW

58.8kW

66kW

73.5kW

200VDC

3000A

3000A

3000A

3000A

3000A

3000A

600VDC

2880A

3000A

3000A

3000A

3000A

3000A

1200VDC

1440A

*

1920A

*

2400A

*

*This formula is the standard cabinet for EL series 7U model. It could extend to 294W. It is available to select cabinet with different specification according to exact situation. Detail please consults our area manager.
