Xtester- CEM DT-9883M 8in 1PM2.5/10 HCHO CO2 TVOC Laser Particle Counter (0.3,0.5,1.0,2.5,5.0,10um Mass Concentration Channel

  • Main Feature :
  • Serial No. : Zoe004

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat: +8618620373879

Xtester- CEM DT-9883M 8in 1PM2.5/10 HCHO CO2 TVOC Laser Particle Counter (0.3,0.5,1.0,2.5,5.0,10um Mass Concentration Channel


Overview

DT-9880/9881/9880M/9881M are Particle Counter with 2.8” color TFT LCD display & a microSD memory card for capturing images(JPEG) or video(3GP) for viewing on your PC, providing fast, easy and accurate readings for particle counter, GAS (HCHO,CO) detectors, air temperature & relative humidity measurements. It is the first combination of these measurements in global, would be the best instrument for environment protection and energy save. The dewpoint temperature measurement will be very visiable for wet and dry proof. It is a good hand for industrial measurements and data analyzing, the real scene and time can be displayed on color TFT LCD. Any memory readings can be recorded in SD card. The user can be back in office to analyze the measured air quality under the support of software.

Technical Parameters


ITEMS

DT-9880

DT-9881

DT-9880M/9881M

DT-9883M

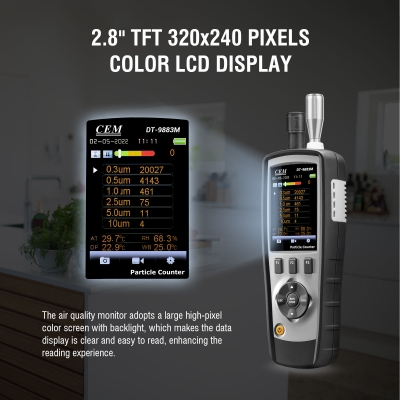

2.8" TFT 320x240 pixels Color LCD display

*

*

*

*

Images(JPEG) & Video(3GP)

*

*

*

*

Simultaneously measure and display 6 channel of particle sizes,

*

*

*

*

measure particle size down to 0.3 µm





The determination of suspended particle concentration in the air of the weight method (PM2.5/PM10)



*

*

GAS (HCHO,CO) detectors


*

-/*

-/*

TVOC,CO2




*

Air temperature and humidity, Dewpoint & Wet bulb temperature

*

*

*

*

Max, Min, DIF, AVG record, Date/time setup controls, alarm

*

*

*

*

MicroSD (MAX. use 8GB) memory card, USB interface

*

*

*

*

Auto Power Off

*

*

*

*

Selectable sample time, count data, programmable delay

*

*

*

*

Store 5000 records of date, time, counts, relative humidity, temperature,sample volumes, alarms and location label

*

*

*

*

Language selection English, Chinese, French, German, Spanish

*

*

*



DT-9880

DT-9881

DT-9880M/9881M

DT-9883M


Particle Counter






Channel

0.3, 0.5, 1.0,2.5, 5.0, 10μm

*

*

*

*

Flow Rate

0.1ft 3 (2.83L/min) controlled by internal pump

*

*

*

*

Count Modes

Totalize, Concentration, Audio

*

*

*

*

Coincidence Loss

5%, 2,000,000 particles per ft³

*

*

*

*

Mass Concentration Channel

PM2.5 :0~500ug/m³ ;PM10:0~500ug/m³



*

*

Air Temperature Measure






Air Temp Range

0 to 50ºC/32 to 122ºF;

*

*

*

*


Basic Accuracy: ±0.5ºC/1ºF





Humidity Range

0 to 100%RH;

*

*

*

*


Basic Accuracy: ±2.5%RH (20%~80%RH)





Dew Point Temp. Range

-30~100ºC/ -22~199ºF

*

*

*

*

Wet Bulb Temp. Range

0~80ºC/ 32~176ºF

*

*

*

*

GAS Detectors






HCHO (methanal) Range

0.01~5.00ppm; Basic Accuracy: ±5%F.S


*

-/*

*

CO (carbon monoxide) Range

0~1000ppm; Basic Accuracy:±5%F.S


*

-/*


CO 2 Range

0~9999ppm; Basic Accuracy: ±75PPM ±5% of reading




*

TVOC Range

0.00~10mg/m 3 ; Accuracy: ±5%F.S
