Musktool-Carbon Dioxide Monitor and Alarm G01- CO2- B3
overview
| Monitoring real-time carbon dioxide, temperature, and relative humidity, with 3-color backlight LCD for three CO2 ranges. It offers the option to display 24-hour averages and maximum CO2 values. The buzzle alarm is available or make it disable, also can be turned it off once the buzzer rings. It has the optional on/off output to control a ventilator, and a Modbus RS485 communication interface. It supports three power supply: 24VAC/VDC, 100~240VAC, and USB or DC power adaptor and can be easily mounted on the wall or placed on a desktop. As one of the most popular CO2 monitors it has gained a strong reputation for high-quality performance, making it a reliable choice for monitoring and managing indoor air quality. |
FEATURES
1. Real time monitoring room carbon dioxide 2. NDIR infrared CO2 sensor inside with special Self Calibration. It makes the CO2 measurement more accurate and more reliable. 3. More than 10 years lifetime of CO2 sensor 4. Temperature and humidity monitoring 5. Three-color (Green/Yellow/ Red) LCD backlight indicates ventilation level -optimal/moderate/poor based on the CO2 measurements 6. Buzzer alarm available/disable selected 7. Optional display 24h average and max. CO2 8. Provide optional 1xrelay output to control a ventilator 9. Provide optional Modbus RS485 communication 10. Touch button for easy operation 11.24VAC/VDC or 100~240V or USB 5V power supply 12.wall mounting or desktop placement available 13.High quality with the excellent performance, best choice for schools and offices 14.CE-approval |
SPECIFICATIONS
| Power supply | 100~240VAC or 24VAC/VDC wire connecting USB 5V (>1A for USB adaptor) 24V with an adaptor |
| Consumption | 3.5 W max. ; 2.5 W avg |
| Gas detected | Carbon Dioxide (CO2) |
| Sensing element | Non-Dispersive Infrared Detector (NDIR) |
| Accuracy@25℃(77℉) | ±50ppm + 3% of reading |
| Stability | <2% of FS over life of sensor (15 yr typical) |
| Calibration interval | ABC Logic Self Calibration Algorithm |
| CO2 sensor life | 15 years |
| Response Time | <2 minutes for 90% step change |
| Signal update | Every 2 seconds |
| Warm up time | <3 minutes (operation) |
| CO2 measuring range | 0～5,000ppm |
| CO2 Display resolution | 1ppm |
| 3-color backlight for CO2 range | Green : <1000ppm Yellow: 1001~1400ppm Red: >1400ppm |
| LCD Display | Real time CO2, Temp &RH Extra 24h average/max/min CO2 (optional) |
| Temperature measuring range | -20～60℃(-4～140℉) |
| Humidity measuring range | 0～99%RH |
| Relay output (optional) | One relay output with rated switching current: 3A, resistance load |
| Operation conditions | -20~60℃(32~122℉); 0~95%RH, non condensing |
| Storage conditions | 0~50℃(14~140℉), 5~70%RH |
| Dimensions/ Weight | 130mm(H)×85mm(W)×36.5mm(D) / 200g |
| Housing and IP class | PC/ABS fireproof plastic material, protection class: IP30 |
| Installation | Wall mounting (65mm×65mm or 2”×4”wire box) Desktop placement |
| Standard | CE-Approval |

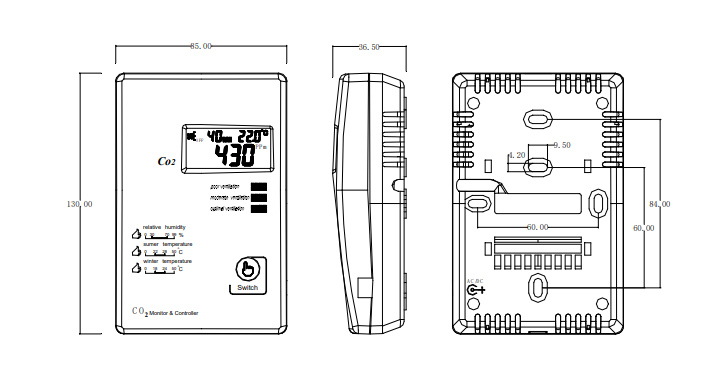

MOUNTING AND DIMENSIONS
