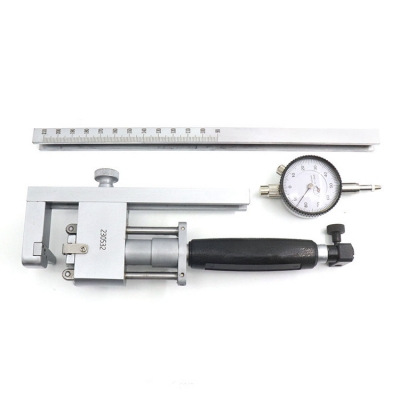

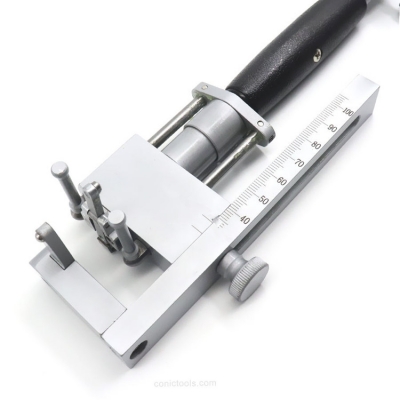

Musktool-CTST001-Special Bore Dial Indicator Dial Bore Gauge for Line Boring Machine

Main Feature : Musktool-CTST001-Special Bore Dial Indicator Dial Bore Gauge for Line Boring Machine
Serial No. : Owen0324

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-CTST001-Special Bore Dial Indicator Dial Bore Gauge for Line Boring Machine

Festures

High-precision measurement capabilityMeasurement range: Covers the typical bore diameter range of boring machine processing (such as 0 - 250mm), meeting the requirements of line boring machines for repairing coaxial hole systems of construction machinery. Accuracy and resolution: Uses a dial indicator with a resolution of 0.001mm to meet the tolerance control requirements for precision boring (such as the ±0.01mm level requirement for hydraulic cylinder repair). The three - jaw measurement structure achieves uniform force through the connecting rod drive system, ensuring that the repeatability error of bore diameter measurement is ≤ ±0.005mm.

Overview

Brand Name	CONICTOOLS
Model Number	CTST001
Material	steel

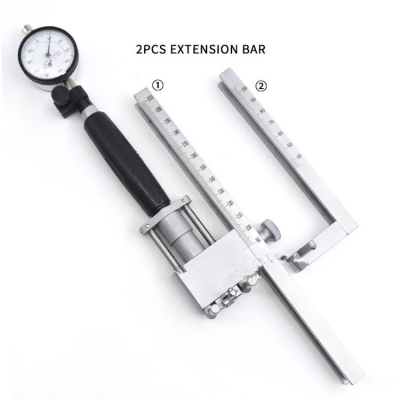

Range	48-66mm /62-100mm
Resolution	0.01mm
Packing	Wooden box

Lable: Special Bore， Dial Indicator， Dial Bore Gauge ，for Line Boring Machine
