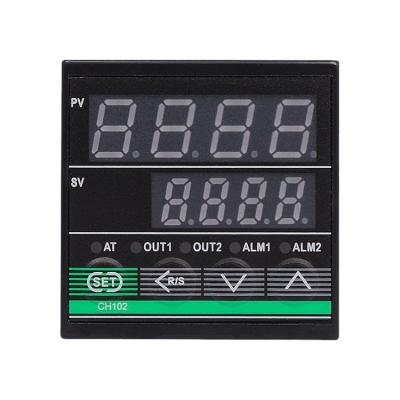

Musktool-CH-102FK02-High Quality Plastic Fuzzy PID Temperature Controller On-Off Function with Two Years Warranty OEM and ODM Supported
Features
| This product combines hardware modularization, intelligent control, and reliability design to provide a cost-effective one-stop solution for industrial temperature control. It is especially suitable for production environments that require multi-device collaboration and high stability. |
Product description
| No. | Meaning | Option |
| 1 | Size | 102=48mm*48mm*75mm 402=48mm*96mm*75mm 502=96mm*48mm*75mm 702=72mm*72mm*75mm 902=96mm*96mm*75mm |
| 2 | Control mode | F=PID |
| 3 | Input type&temperature range | K02= K input 0-400C K06= K input 0-1200C J02 =J input 0-400C J06= J input 0-1200C
|
| 4 | Mian output | M= Relay output V= Voltage pulse (SSR ) 8= 4-20mA |
| 5 | First Alarm | A=Upper limit deviation alarm B=Lower limit deviation alarm N=Without alarm |
| 6 | Second alarm | A=Upper limit deviation alarm B=Lower limit deviation alarm |
