Musktool-CH402 Ch Series PID Temperature Controller Plastic Material OEM and ODM Supported Price

  • Main Feature : Musktool-CH402 Ch Series PID Temperature Controller Plastic Material OEM and ODM Supported Price
  • Serial No. : Owen0370
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-CH402 Ch Series PID Temperature Controller Plastic Material OEM and ODM Supported Price

Features

  • Compatibility with Multiple Input Types It supports 13 types of thermocouples (such as K, J, E, T, R, S, B), thermal resistors (PT100,JPT100), and analog inputs (0 - 5V/1 - 5V voltage, 0 - 20mA/4 - 20mA current), and can be adapted to various sensors and signal sources.

  • The input accuracy is ±0.3% FS + 1 digit, and the sampling period is 0.5 seconds, ensuring a rapid response to temperature changes.

  • Advanced Control Algorithms and Functions It adopts the PID + fuzzy control algorithm, supports automatic/manual switching and self - tuning (AT) functions, and can automatically optimize PID parameters to adapt to different load characteristics. Some models have an adaptive adjustment mode, which can dynamically adjust control parameters according to environmental changes to improve stability.

  • Flexible Output Configuration It provides multiple options such as relay contacts (AC250V/3A), solid - state relay (SSR) drive (DC12V), and 4 - 20mA analog output.

  • It supports dual - output control for heating/cooling, meeting the requirements of different actuators.

  • Some models can be equipped with heater open - circuit alarm (CTL - 12) and control loop open - circuit alarm functions to enhance system reliability.

  • Industrial - Grade Design and Protection The housing is made of flame - retardant ABS material, and the protection level meets the IP54 standard.

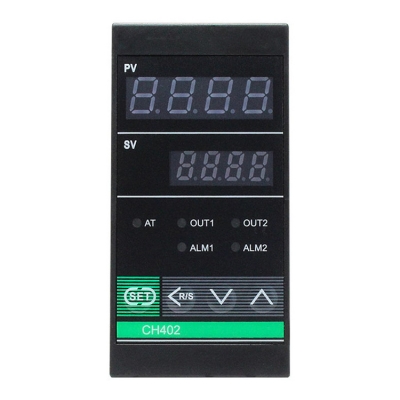

  • It has strong corrosion resistance and is suitable for high - temperature and dusty environments. The panel size is 48×96mm, supporting embedded installation, and is equipped with a 4 - digit LED dual display

Product description

No.MeaningOption
1Size

102=48mm*48mm*75mm

402=48mm*96mm*75mm

502=96mm*48mm*75mm

702=72mm*72mm*75mm

902=96mm*96mm*75mm

2Control modeF=PID
3Input type&temperature range

K02= K input  0-400C

K06= K input  0-1200C

J02 =J input   0-400C

J06= J input   0-1200C



4Mian output

M= Relay output

V= Voltage pulse (SSR )

8= 4-20mA

5First Alarm

A=Upper limit deviation alarm

B=Lower limit deviation alarm

N=Without alarm

6Second alarm

A=Upper limit deviation alarm

B=Lower limit deviation alarm

N=Without alarm

图片关键词



Lable: CH402 Ch Series ,PID Temperature Controller Plastic Material, OEM and ODM Supported Price
