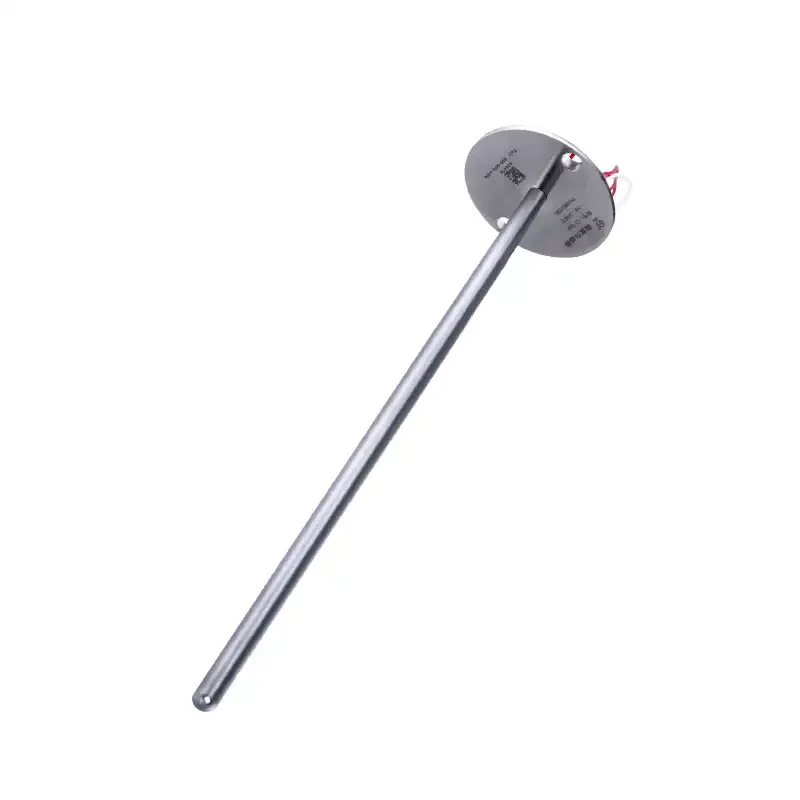

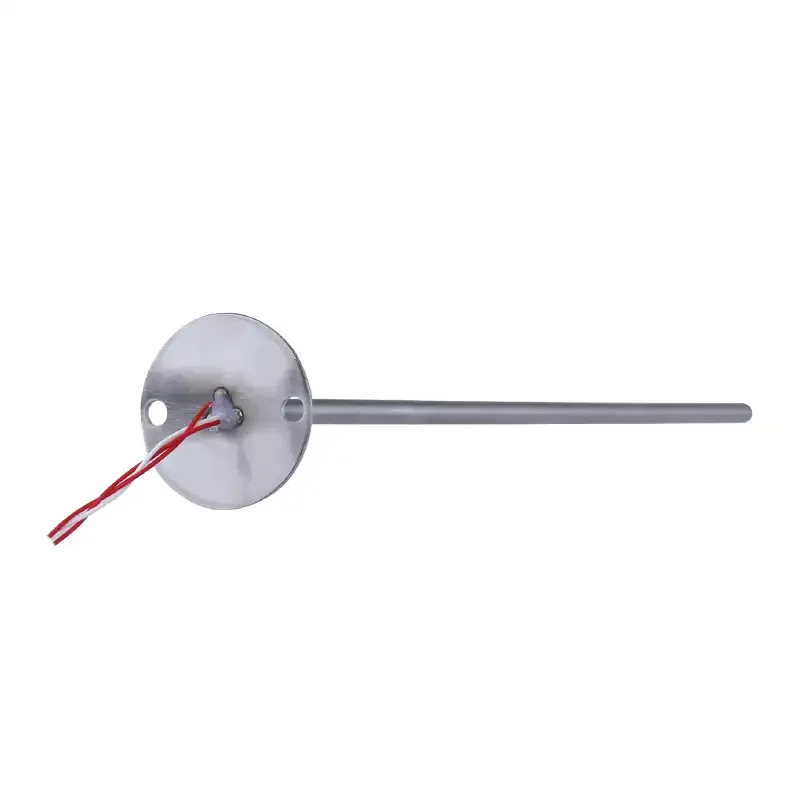

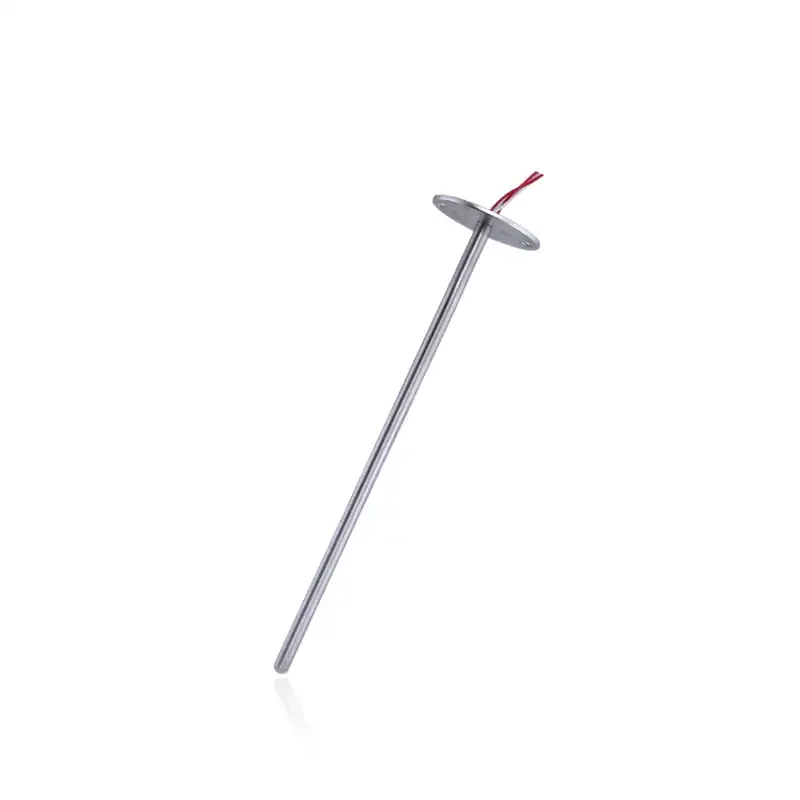

Musktool- C1 Armored Temperature Sensor for armored temperature transmitters
The C1 armored temperature sensor core is suitable for armored temperature transmitters that meet this size.
Technical parameters Measuring element: platinum resistance Pt100 (1/3B class) Measuring range: -50~300°C, -200~300°C, -50~500°C Output: Pt100
[In addition, we can provide customized products to meet the needs of customers in a short period of time, according to their application.] ]
Typical applications General industry
Measuring medium Solid, liquid or gas (compatible with contact material) |
Technical parameters
Basic parameters | |
Measuring medium | Solid, liquid or gas (compatible with contact materials) |
Measuring range | -50~300℃, -200~300℃, -50~500℃ |
Measuring element | 1*Pt100 (1/3B grade) |
Response time | ≤18s (compliant with IEC60751, 0.4m/s water flow, 10°C step) |
Stable performance | ±0.1% FS/year |
Protection level | IP68 |
Electrical protection | |
Insulation resistance | ≥100MΩ,500VDC |
Dielectric strength | 500VAC |
Overall material | |
shell | 304 stainless steel |
Cables | 0.2 compensation cable |
Mechanical stability | |
Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms, in compliance with IEC60068-2-27 standard |
