Musktool-Wind Speed Anemometer Air Velocity Airflow Meter Digital Flowmeter Monitor Sensor Air Flow Analyzer
Products:
temperature and humidity sensor, gas sensor, water quality sensor, liquid level sensor, dust sensor, illuminance sensor, ultrasonic sensor, laser sensor, infrared sensor, current sensor, relay module, development board, communication module, electronic module, power module , other accessories, etc.
|
Product Description
Product Overview

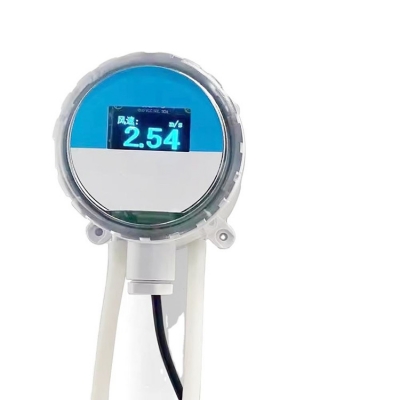

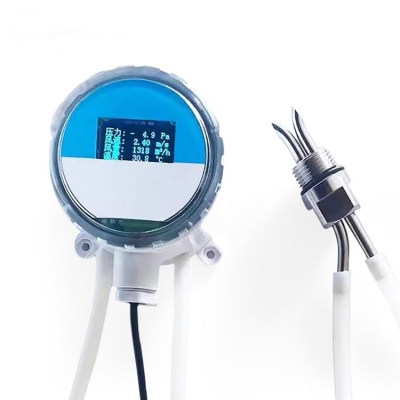

The explosion-proof wind speed and pressure transmitter is a highly stable and multifunctional measuring instrument suitable for measuring positive pressure, negative pressure and differential pressure of gases within the range of 1000 Pa. Based on the Bernoulli equation and the principle of the Pitot tube, the pressure is converted into wind speed and air volume output. The main unit is equipped with a standard Pitot tube to measure the flow and velocity of the air duct, as well as the temperature and pressure. |
| Wind speed range | 0-30m/s (Customizable, please contact us.) |
| Differential pressure range | -1000 ~ +1000Pa(Customizable, please contact us.) |
| Air volume range | <999999m3/h(Customizable, please contact us.) |
| Temperature range | 0-80℃(Customizable, please contact us.) |
| Accuracy | 1% |
| Communication port | RS485 / 0-5V / 0-10V / 4-20mA (Customizable, please contact us.) |
| Power supply | 24V DC (Customizable, please contact us.) |
| Medium temperature | -30℃~+200℃ |
