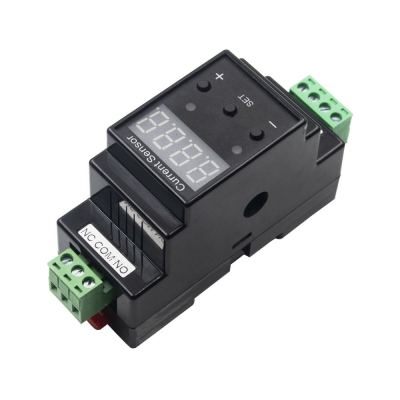

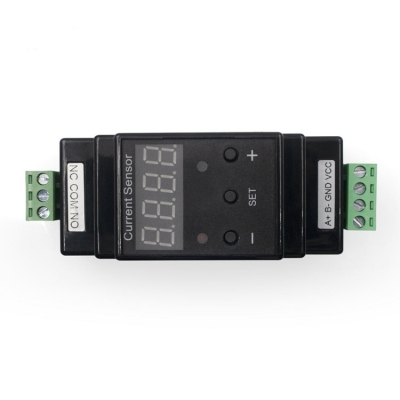

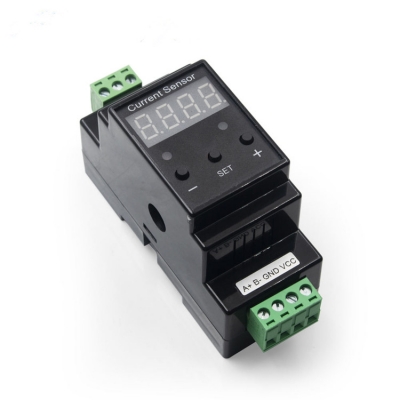

Musktool-Custom Analog Switch Digital Output 5A 10A 20A 50A AC DC Transformer RS485 Current Sensor
Products:
| temperature and humidity sensor, gas sensor, water quality sensor, liquid level sensor, dust sensor, illuminance sensor, ultrasonic sensor, laser sensor, infrared sensor, current sensor, relay module, development board, communication module, electronic module, power module , other accessories, etc. |
Product Description
Selection Guide
| Product number | Measurement range | Hole diameter | Output signal |
| LC80A1 | AC 0-5A | φ4mm | 0-5V and Relay output |
| LC80A2 | AC 0-10A | φ5mm | 0-5V and Relay output |
| LC80A3 | AC 0-20A | φ7mm | 0-5V and Relay output |
| LC80A4 | AC 0-50A | φ7mm | 0-5V and Relay output |
| LC80A5 | DC 0-6A | φ8mm | 0-5V and Relay output |
| LC80A6 | DC 0-15A | φ8mm | 0-5V and Relay output |
| LC80A7 | DC 0-25A | φ8mm | 0-5V and Relay output |
| LC80A8 | DC 0-50A | φ8mm | 0-5V and Relay output |
| LC80B1 | AC 0-5A | φ4mm | 0-10V and Relay output |
| LC80B2 | AC 0-10A | φ5mm | 0-10V and Relay output |
| LC80B3 | AC 0-20A | φ7mm | 0-10V and Relay output |
| LC80B4 | AC 0-50A | φ7mm | 0-10V and Relay output |
| LC80B5 | DC 0-6A | φ8mm | 0-10V and Relay output |
| LC80B6 | DC 0-15A | φ8mm | 0-10V and Relay output |
| LC80B7 | DC 0-25A | φ8mm | 0-10V and Relay output |
| LC80B8 | DC 0-50A | φ8mm | 0-10V and Relay output |
| LC80C1 | AC 0-5A | φ4mm | RS485 and Relay output |
| LC80C2 | AC 0-10A | φ5mm | RS485 and Relay output |
| LC80C3 | AC 0-20A | φ7mm | RS485 and Relay output |
| LC80C4 | AC 0-50A | φ7mm | RS485 and Relay output |
| LC80C5 | DC 0-6A | φ8mm | RS485 and Relay output |
| LC80C6 | DC 0-15A | φ8mm | RS485 and Relay output |
| LC80C7 | DC 0-25A | φ8mm | RS485 and Relay output |
| LC80C8 | DC 0-50A | φ8mm | RS485 and Relay output |
Working voltage: DC10~28V (the power supply voltage of 0-10V must be greater than 14V)
Power Consumption: <0.8W
Detection accuracy: ±1%F*S
Installation method: C45 standard 35mm rail installation
Detection range: AC 0-5A/10A/20A/50A; DC 0-6A/15A/25A/50A
Output mode:
1. switch relay output;
2. analog signal DC0-5V/0-10V;
3. Digital ModbusRTU-RS485.
Function selection: select the desired function through the buttons on the module,
