Musktool-American galvanized D-shape shackle Bow lifting and hoisting shackle
Specification
| 1T | 12T | 25T |
| 1.5T | 13.5T | 35T |
| 3.25T | 17T | |
| 6.5T | ||
| 8.5T |

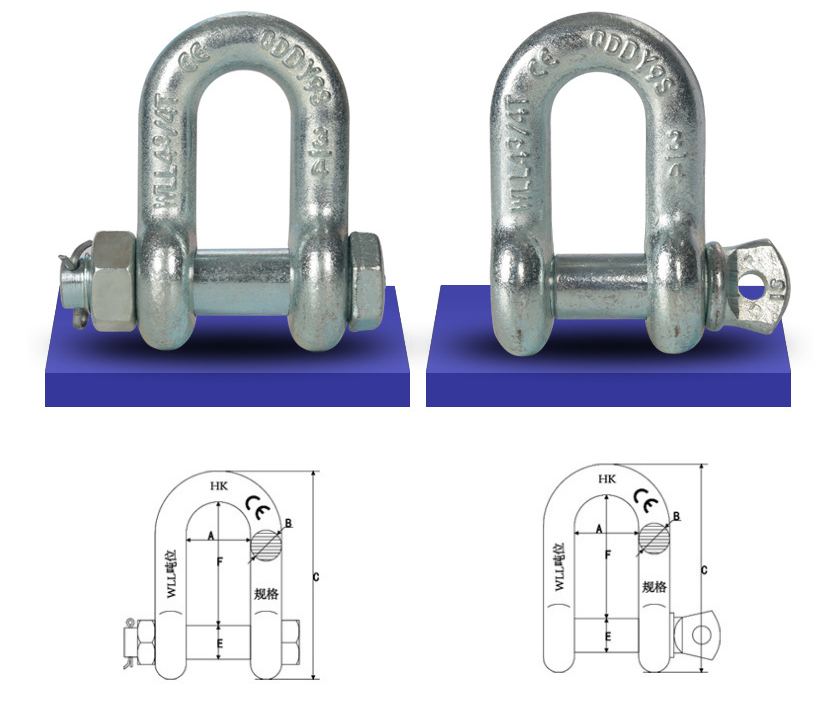

High strength D-type buckles
| Specification | Tonnage | A±3(mm) | B±1(mm) | C±3(mm) | E±2(mm) | F±3(mm) |
| 5/8 | 3.25 | 27.3 | 16 | 96.4 | 18 | 52.4 |
| 3/4 | 4.75 | 31.5 | 19 | 113.8 | 22.5 | 60.8 |
| 7/8 | 6.5 | 36.4 | 22 | 133.2 | 25 | 72 |
| 1 | 8.5 | 43.5 | 25 | 150.3 | 28 | 80.4 |
| 1-1/8 | 9.5 | 47.5 | 28 | 172.3 | 32 | 93 |
| 1-1/4 | 12 | 51.6 | 32 | 190 | 35 | 102 |
| 1-3/8 | 13.5 | 59 | 35 | 217.5 | 38 | 121.5 |
| 1-1/2 | 14 | 62 | 38 | 228 | 41.5 | 123.3 |
| 1-3/4 | 25 | 70 | 44 | 270.2 | 50 | 146.5 |
| 2 | 35 | 83 | 50 | 314 | 55 | 174.5 |
| 2-1/2 | 55 | 105.6 | 65.2 | 372.8 | 70 | 207.2 |

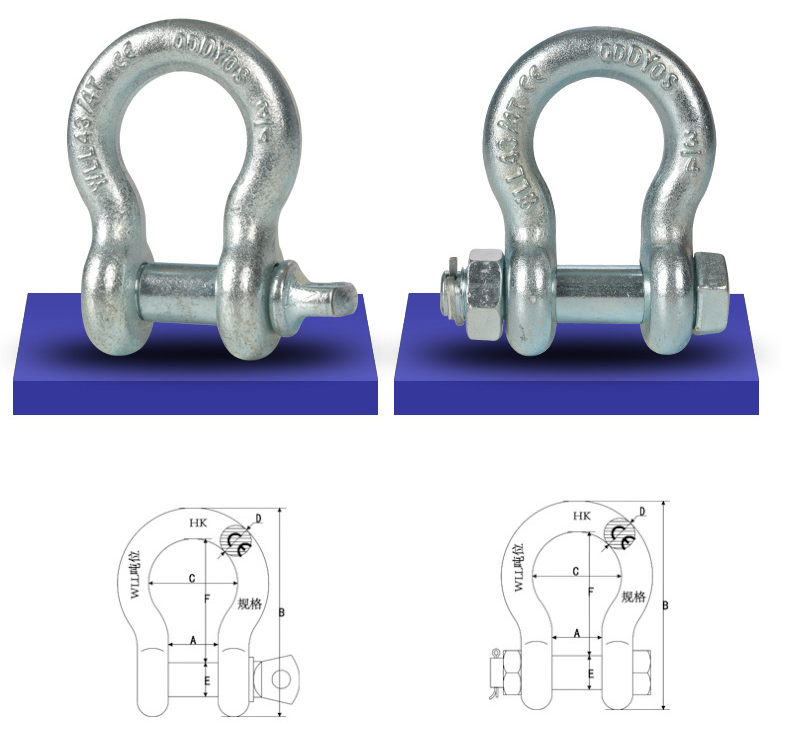

High Strength Bow Type Shackle
| Specification | Tonnage | A±2(mm) | B±3(mm) | C±2(mm) | D±1(mm) | E±2(mm) | F±3(mm) |
| 5/8 | 3.25 | 27.3 | 105.6 | 42.5 | 16 | 18 | 61.3 |
| 3/4 | 4.75 | 31.5 | 125.2 | 50.4 | 19 | 22.5 | 71.2 |
| 7/8 | 6.5 | 36.4 | 147.8 | 58.6 | 22 | 25 | 86.5 |
| 1 | 8.5 | 43.5 | 166.3 | 68.7 | 25 | 28 | 97.2 |
| 1-1/8 | 9.5 | 47.5 | 187 | 75 | 28 | 32 | 107.8 |
| 1-1/4 | 12 | 51.6 | 209.7 | 85 | 32 | 35 | 122 |
| 1-3/8 | 13.5 | 59 | 230 | 94 | 35 | 38 | 134 |
| 1-1/2 | 17 | 62 | 253.5 | 99 | 38 | 41.5 | 148.8 |
| 1-3/4 | 25 | 70 | 302.8 | 128 | 44 | 50 | 180.4 |
| 2 | 35 | 83 | 337.5 | 148.3 | 50 | 55 | 198.6 |
| 2-1/2 | 55 | 105.6 | 437 | 183.6 | 65.2 | 70 | 273.5 |
