Musktool-AWS Wedge 70 60 45 for Ultrasonic Flaw DetecorAWS Angle Beam Probe 3pcsset

Main Feature : Musktool-AWS Wedge 70 60 45 for Ultrasonic Flaw DetecorAWS Angle Beam Probe 3pcsset
Serial No. : Owen0242

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-AWS Wedge 70 60 45 for Ultrasonic Flaw DetecorAWS Angle Beam Probe 3pcsset

Features

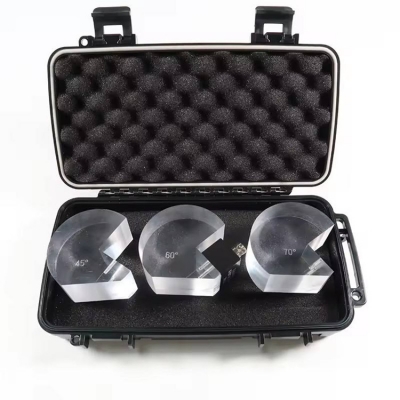

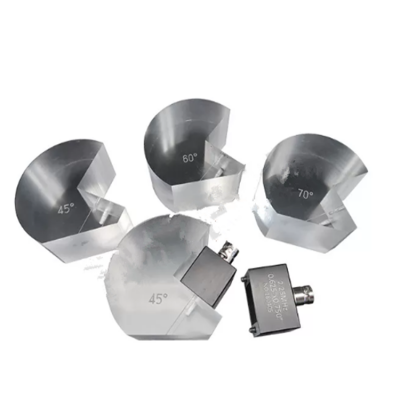

Full coverage of angle specifications: Includes three types of angle wedges (AWS Wedge) with angles of 70°, 60°, and 45°, which are compatible with AWS standard angle beam probes (Angle Beam Probe), and can meet the ultrasonic flaw detection requirements of workpieces with different thicknesses. For example:

The 45° wedge is suitable for weld detection of medium - thick plates (10 - 50mm) and can effectively detect transverse cracks;

The 60° and 70° wedges are more suitable for detecting circumferential defects in thin - walled workpieces (3 - 10mm) or small - diameter pipes, reducing the blind zone of acoustic wave reflection.

Compatibility with AWS standards: Complies with the specifications of AWS (American Welding Society). The angle accuracy of the wedge is controlled within ±1°, ensuring the accuracy of the acoustic wave refraction angle and meeting the industry standards for welding quality inspection (such as AWS D1.1 Structural Welding Code - Steel).

AWS wedge probe shoe for AWS Code Probe

AWS-45	wedge
AWS-60	wedge

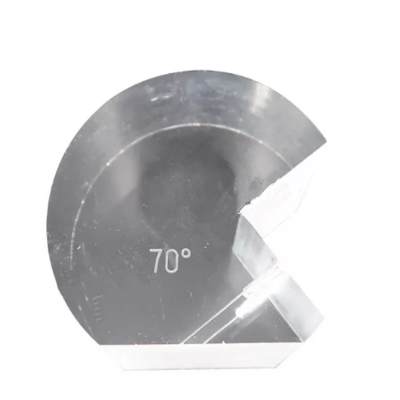

AWS-70	wedge

Lable: Musktool-AWS Wedge 70 60 45 for Ultrasonic Flaw DetecorAWS Angle Beam Probe 3pcsset
