853AAA+ Multi functional preheat station soldering iron desoldering hot air gun soldering rework station

  • Main Feature :
  • Serial No. : Zoe250
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool- 853AAA+ Multi functional preheat station soldering iron desoldering hot air gun soldering rework station



Feature

1.Adopts PID programmable temperature control technology with an implantable highest-precision PID program for high-speed tracking and detection of actual soldering iron temperature with real-time temperature correction.Miraculous temperature compensation speeds allow for  minimal temperature error for temperature stability and compensation speeds.

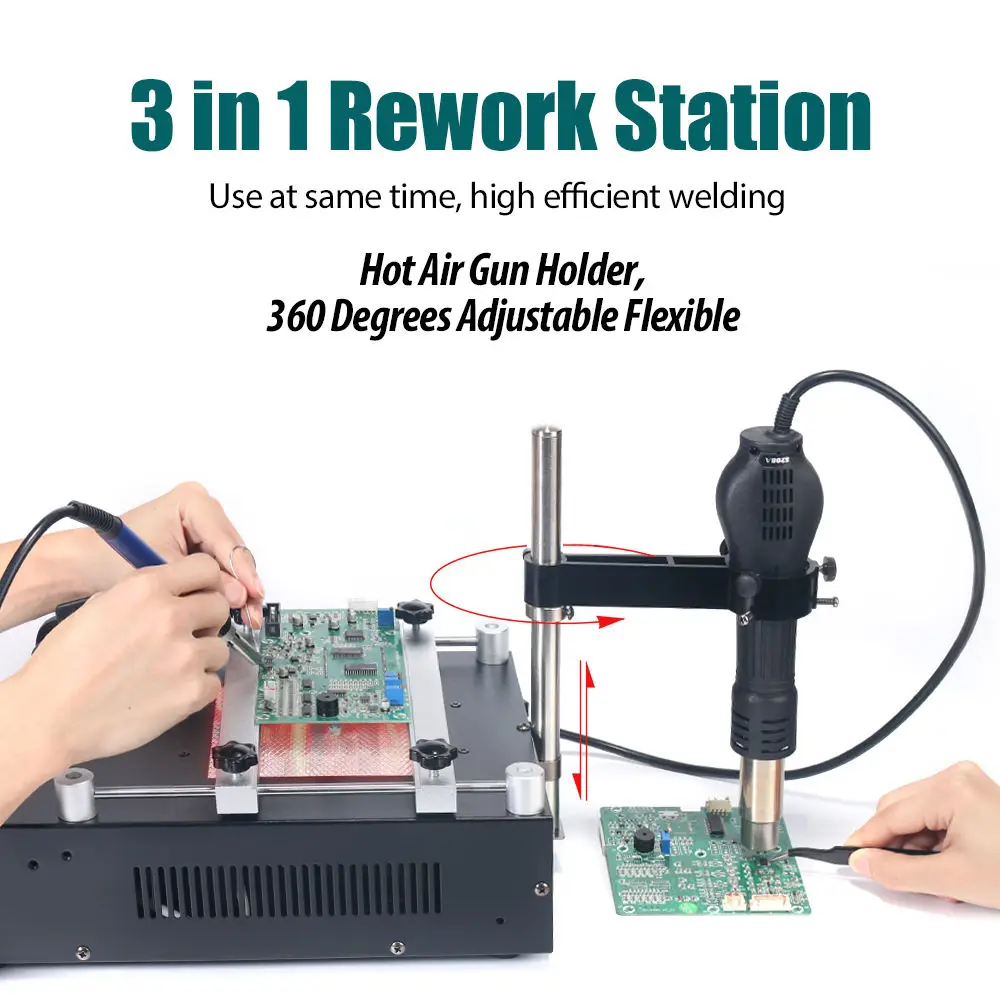

2.Featuring hot air gun rework station ,preheating station ,and high power soldering station functions.

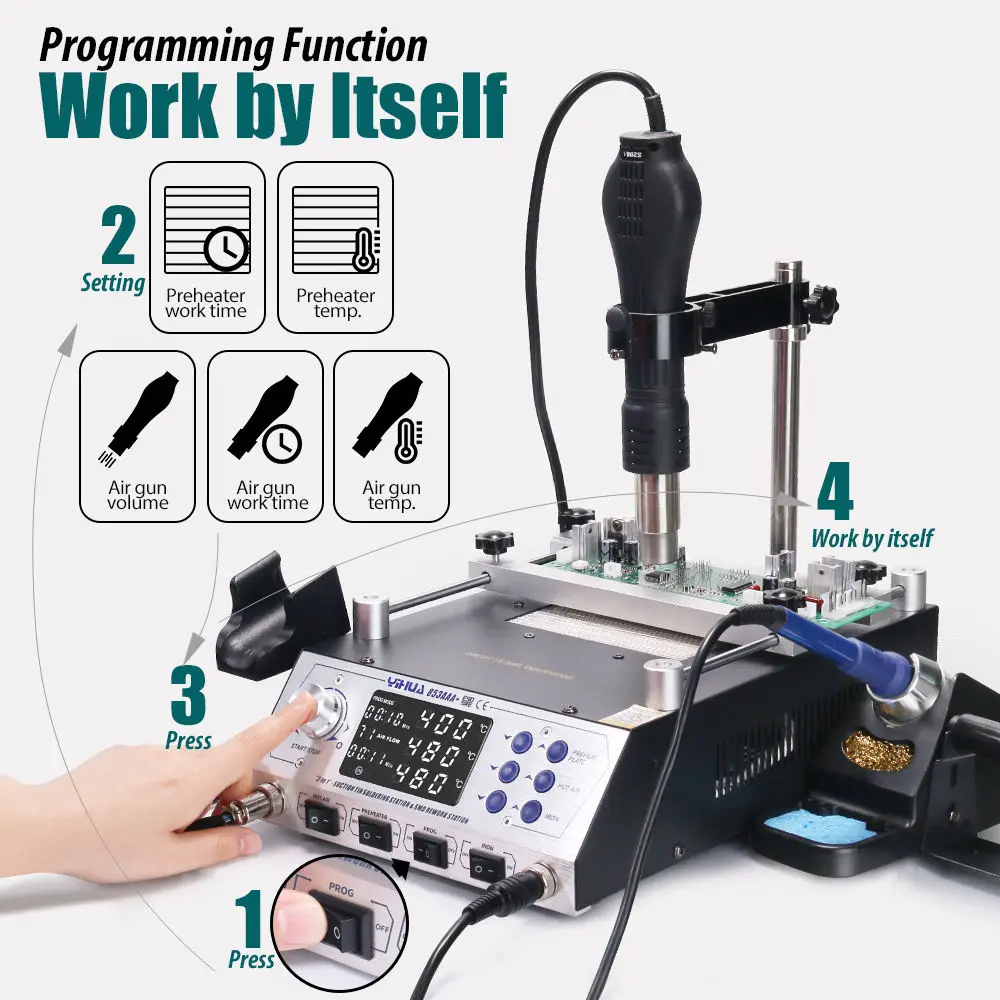

3.The hot air gun and preheating station soldering equipment have programmable functions.For the preheating station ,operating time and operating temperature can be set as parameters ,while for the hot air gun ,operating time ,operating temperature and operating air flow can be set as parameters.



4. Featuring Celsius / Fahrenheit temperature display function

Meet different market needs to design the temperature display mode, the temperature display function can be set to display either Celsius or Fahrenheit ,depending on local practices.



5.Features +-80℃ temperature compensation function.Temperature and display errors caused by environmental effects or replacement of parts including heating core and soldering iron tips can be corrected by using this function.



6.There are three sections of storage function,it can store different parameters ,easy to choose and easy to operate.



7.The product has an operating time function ,enabling users to check the product's operating time.

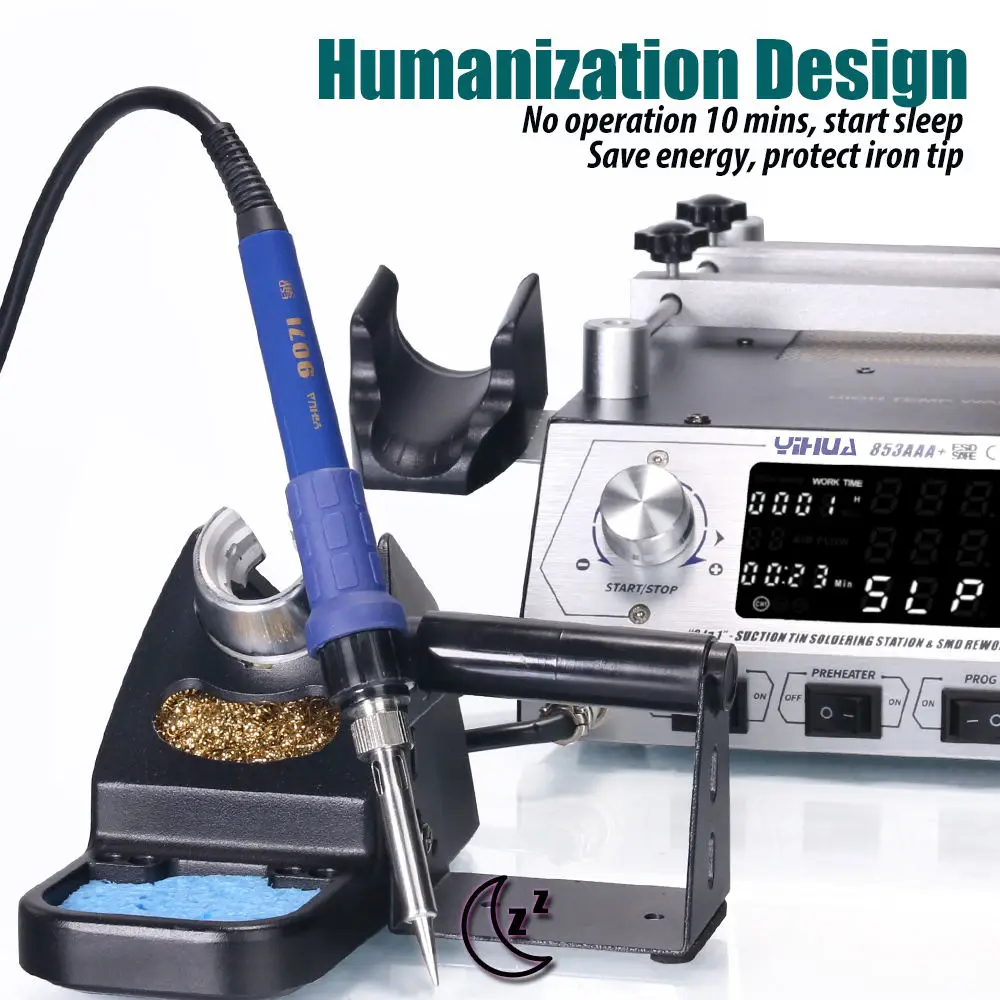

8.The soldering iron has a ten-minute fixed sleeping function .If the soldeirng iron is not in use and has been in a stationary state for ten minutes ,the temperature of the soldering iron will be automatically cooled to 200℃ and the soldering iron shall enter sleep mode ,preventing the oxidization of the soldering iron tip,both extending the lifespan of the soldering iron tip and saving energy.



9.The air gun has no wind protection function ,if use a heat gun is not normal in the process of stop the wind ,the heating wire to stop heating ,and the prevention of the no wind burning handle, so as to greatly improve the safety performance of the product.



Data:



Input Voltage: AC 110~127V 60Hz/ 220~240V 50Hz
Max power consumption: 1200W



Preheating Station
Temperature Range: 50 ~ 400 °C
Temperature Stability ±2 °C
Display Type: Blue LED
Preheat Area: 120*120mm



Hot Air Station
Airflow type brushless fan spiral out wind
Air Flow ≤120L/min
Temperature Range 100 ~ 480 °C
Temperature Stability ±1 °C
Display Type: Blue LED
Handle cable length ≥100cm



Soldering Iron Station
Temperature Range 200 ~ 480 °C
Soldering iron heater: 60W ceramic heater
Temperature Stability ±1 °C
Tip of ground voltage <2mV
Tip ground impedance <2 ohm
Display Type: Blue LED
Handle cable length ≥100cm
