200A/10mΩ micro-ohmmeter,ohmimeter

  • Main Feature : 200A/10mΩ
  • Serial No. :

Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-LX200A-200A/10mΩ Contact resistance tester,micro-ohmmeter,ohmimeter

图片关键词

PRODUCT OVERVIEW

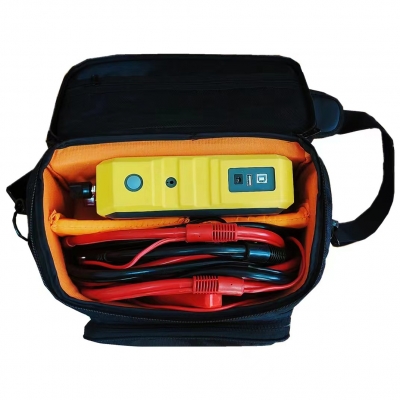

This tester is an innovative product, small size, handheld operation, battery powered, easy to carry.

The tester is mainly suitable for testing the contact resistance of high and low voltage switches, dc resistance of high and low voltage cable lines and other microohmic resistance measurement, testing speed, high accuracy.

Functional Characteristics

  1. Output current up to 200A, multi-current optional, wide measuring range.

  2. A variety of measurement time options, to meet a variety of field applications.

  3. Wide range, high accuracy, resolution 0.1uΩ.

  4. Lithium battery power, one charge can be more than 500 times of continuous testing, simple and convenient measurement process.

  5. With open circuit protection, overheating protection and other protection functions.

  6. Adopt 4.3 inch industrial high brightness color LCD screen, display clearly under strong sunlight.

  7. Equipped with external printer, easy to print data.

  8. With local storage and U disk storage, convenient data storage.

Technical specification

Output current:

200A, 150A, 100A, 50A

Measuring range:

200A  0 - 1000uΩ

150A  0 - 1400uΩ

100A  0 - 2000uΩ

50A   0 - 10 mΩ

Accuracy: Accuracy: ± (reading x 0.5%+ 1 uΩ)
Resolution: 0.1 uΩ
Measurement time: fast, 10 ~ 60 seconds optionalMeasurement time: fast, 10 ~ 60 seconds optional
Automatic shutdown: Automatic shutdown after 5 minutes without operation
Power supply: Built-in lithium battery or external charger, charger input 100 - 240VAC, 50Hz/60Hz
Charging voltage: 12.6V
Charging current:≤3A
Host size: 220mm ×168mm ×65mm
Host weight: 1.6kg (excluding test line)
Working Conditions
Ambient temperature:-10 ℃ - 50 ℃
Ambient humidity: ≤85%RH
Atmospheric pressure: 70 ~ 106Kpa;
Storage temperature: -40 ℃ - +70 ℃
